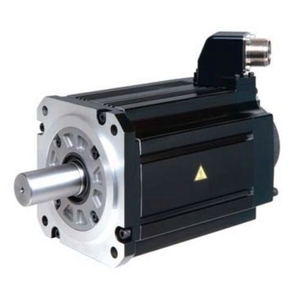

Mitsubishi HG-JR1534B - Servo Motors
Technical Specifications of Mitsubishi Servo Motors HG-JR1534B:
| Brand | Mitsubishi |
| Product Type | Servo Motors |
| Product | HG-JR1534B |
Mitsubishi Servo Motors HG-JR1534B Technical Specifications:
| Specification | Value |
|---|---|
| Series | MELSERVO-J4 |
| Type | HG-JR |
| Power Supply (V) | 400 |
| Rated Capacity (kW) | 1,5 |
| Inertia | LOW INERTIA |
| Rated Torque (Nm) | 4,8 |
| Maximum Torque (Nm) | 14,3 |
| Rated Speed (rpm) | 3000 |
| Inertia (kg*cm2) | 4,29 |
| Brake | YES |
| Shaft Type | STRAIGHT SHAFT |
| Current Type | AC |
| Encoder Resolution (p/rev) | 4194304 |
| Maximum Speed (rpm) | 6000 |
| Protection Class | IP67 |
| Encoder Type | 22-BIT |
| Depth (mm) | 285 |
| Weight (kg) | 7,3 |
| Width (mm) | 90 |
| Height (mm) | 138,8 |
The Mitsubishi HG-JR1534B Servo Motor is a low inertia 1.5 kW industrial drive designed for precise motion control in automation systems. The model delivers 4.8 Nm rated torque, 3000 rpm speed, and a 22-bit encoder to support high-resolution positioning. As part of the MELSERVO-J4 series, the HG-JR1534B ensures stable rotational performance across continuous-duty machine operations.
This servo motor is suited for conveyors, packaging machinery, robotics, and assembly lines requiring fast response and reliable motion output. Its 6000 rpm maximum speed, IP67 protection, and AC-driven capability support consistent use in production environments with dust, moisture, or mechanical vibration. The built-in brake allows secure load handling in vertical or position-critical applications.
The Mitsubishi HG-JR1534B Servo Motor combines precise encoder resolution, stable torque delivery, and durable construction suitable for industrial motion tasks. Mitsubishiβs engineering reliability supports predictable performance, long operating life, and accurate machine movement across automated systems requiring consistent, controlled motion.
