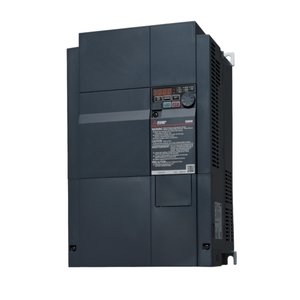

Mitsubishi FR-E840-0380-4-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E840-0380-4-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E840-0380-4-60 |
Mitsubishi Variable Frequency Drive FR-E840-0380-4-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800 RS485 INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 38 |
| Rated Motor Capacity ND (kW) | 18,5 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 7 |
| Digital Outputs (Transistor) | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| Integrated Analogue Outputs | 1 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 1 |
| USB | 1 (MINI B) |
| Ethernet Port | NO |
| Built-In Network | MODBUS-RTU |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 348 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
| Weight (kg) | 11 |
| Width (mm) | 220 |
| Height (mm) | 350 |
| Rated Output Current LD (A) | 45 |
| Rated Motor Capacity LD (kW) | 22 |
| Power Loss LD (W) | 510 |
The Mitsubishi FR-E840-0380-4-60 Variable Frequency Drive is a reliable model within the FR-E800 SERIES for industrial motor control. It provides 18.5kW rated power, 38A output current, and 380–480V AC input with IP20 protection. This Mitsubishi Variable Frequency Drive includes V/F and Sensorless Vector Control methods, supporting both induction and PM motors in precision-driven automation systems.
The Mitsubishi FR-E840-0380-4-60 is widely used in conveyors, pumps, packaging machines, and process automation systems where smooth and consistent speed control is essential. With Safe Torque Off (STO) functionality, RS-485 communication, and Modbus-RTU compatibility, it ensures safe, efficient, and integrated performance across industrial environments.
The Mitsubishi FR-E840-0380-4-60 Variable Frequency Drive combines durability, energy efficiency, and control precision in the FR-E800 SERIES. Featuring 18.5kW output power and Magnetic Flux Vector Control, it guarantees dependable performance for industrial automation. Supported by Mitsubishi engineering, this drive is an excellent choice for industrial users in India seeking consistent and safe drive operation.
