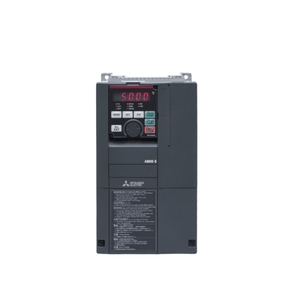

Mitsubishi FR-A840-00083-E2-60 Variable Frequency Drive
The Mitsubishi FR-A840-00083-E2-60 Variable Frequency Drive operates on a 380β500V AC 3-phase input with 2.2kW motor capacity, 6A rated current, and IP20 protection. Belonging to the Mitsubishi Variable Frequency Drive range under the Mitsubishi brand, this model is part of the FR-A SERIES. It supports Vector Control and Sensorless Vector Control, includes a 5-digit LED display, and features Safe Torque Off (STO) for secure motor operation.
| Brand | Mitsubishi |
| Product Type | VFD - Variable Frequency Drive |
| Product | FR-A840-00083-E2-60 |
Mitsubishi Variable Frequency Drive FR-A840-00083-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 6 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK, MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss ND (W) | 100 |
| Protection Class | IP20 |
| Depth (mm) | 140 |
| Weight (kg) | 3,4 |
| Width (mm) | 150 |
| Height (mm) | 260 |
| Standby Power Consumption (W) | 19 |
| Rated Output Current LD (A) | 7,6 |
| Rated Motor Capacity LD (kW) | 3,7 |
| Power Loss LD (W) | 120 |
| Rated Output Current SLD (A) | 8,3 |
| Rated Motor Capacity SLD (kW) | 3,7 |
| Power Loss SLD (W) | 130 |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| Rated Output Current HD (A) | 4 |
| Rated Motor Capacity HD (kW) | 1,5 |
| Power Loss HD (W) | 75 |
The Mitsubishi FR-A840-00083-E2-60 Variable Frequency Drive belongs to the FR-A SERIES and provides 2.2kW output power with a 6A rated current. It operates on a 380β500V AC 3-phase input and supports multiple control modes including Vector Control and V/F Control. This Mitsubishi Variable Frequency Drive ensures efficient speed and torque control for induction and PM motors in industrial automation systems.
The Mitsubishi FR-A840-00083-E2-60 is used in conveyors, pumps, packaging machines, and process automation setups that require stable and reliable drive control. With Ethernet and RS-485 connectivity, it integrates easily into industrial networks. Its Safe Torque Off (STO) feature enhances operational safety while the compact design simplifies installation within control panels.
The Mitsubishi FR-A840-00083-E2-60 Variable Frequency Drive combines IP20 protection, 2.2kW motor capacity, and Vector Control precision for dependable industrial performance. As part of the trusted FR-A SERIES, it delivers energy-efficient and accurate motor operation. Supported by Mitsubishi engineering, it ensures long-term reliability and consistent results for industrial automation in India.
