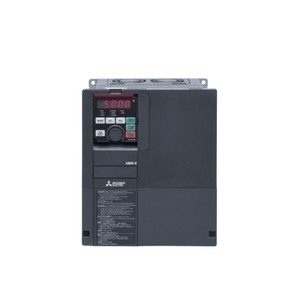

Mitsubishi FR-A840-00170-E2-60 Variable Frequency Drive
The Mitsubishi FR-A840-00170-E2-60 Variable Frequency Drive operates on a 380–500V AC 3-phase input with 5.5kW motor capacity, 12A rated current, and IP20 protection. It belongs to the Mitsubishi Variable Frequency Drive family under the Mitsubishi brand and is part of the FR-A SERIES. Supporting Vector Control and Sensorless Vector Control for induction and PM motors, it includes a 5-digit LED display and Safe Torque Off (STO) for dependable operation.
| Brand/Manufacturer | Mitsubishi Electric |
| Product Type | VFD (Variable Frequency Drive) |
| Model No. | FR-A840-00170-E2-60 |
Mitsubishi Variable Frequency Drive FR-A840-00170-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 12 |
| Rated Motor Capacity ND (kW) | 5,5 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | YES |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Depth (mm) | 170 |
| Width (mm) | 220 |
| Height (mm) | 260 |
| Protection Class | IP20 |
| Weight (kg) | 6,7 |
The Mitsubishi FR-A840-00170-E2-60 Variable Frequency Drive is a compact, high-performance drive in the FR-A SERIES. It delivers 5.5kW output power with a 12A rated current and supports both induction and PM motor control. This Mitsubishi Variable Frequency Drive integrates Vector Control and V/F Control for precise speed regulation, making it ideal for demanding automation environments.
The Mitsubishi FR-A840-00170-E2-60 is widely used in conveyors, packaging lines, assembly systems, and industrial equipment requiring stable performance and efficient motor operation. Its Safe Torque Off (STO) function enhances safety, while Ethernet and RS-485 connectivity ensure seamless communication within control networks. Compact design and spring clamp terminals simplify integration in factory automation setups.
The Mitsubishi FR-A840-00170-E2-60 Variable Frequency Drive provides reliable control and efficiency within the FR-A SERIES. Featuring IP20 protection and advanced Sensorless Vector Control, it ensures accuracy and energy savings in automation systems. Supported by the trusted Mitsubishi brand, this model is ideal for industrial users in India seeking consistent performance and durability in variable frequency applications.
