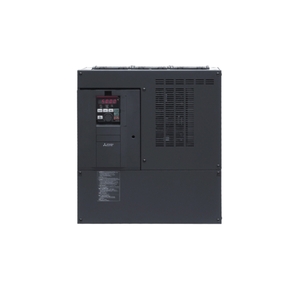

Mitsubishi FR-AF840-01800-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-AF840-01800-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-AF840-01800-60 |
Mitsubishi Variable Frequency Drive FR-AF840-01800-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A/F800 SERIES |
| Type | BASE UNIT FOR INV A840/F840 |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 110 |
| Rated Motor Capacity ND (kW) | 55 |
| Control Method | VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | 2 |
| USB | 2 |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss ND (W) | 1290 |
| Protection Class | IP00 |
| Depth (mm) | 250 |
| Weight (kg) | 43 |
| Width (mm) | 435 |
| Height (mm) | 550 |
| Standby Power Consumption (W) | 28 |
| Power Loss LD (W) | 1640 |
| Power Loss SLD (W) | 2000 |
| Rated Motor Capacity HD (kW) | 45 |
| Power Loss HD (W) | 1060 |
The Mitsubishi FR-AF840-01800-60 Variable Frequency Drive delivers 55kW rated power and operates at 380–500V AC with 110A output current. Belonging to the FR-A/F800 SERIES, it integrates Vector Control technology and supports both induction and permanent magnet motors. This Mitsubishi Variable Frequency Drive ensures precise speed control, energy-efficient operation, and safe performance through built-in STO functionality.
The Mitsubishi FR-AF840-01800-60 is widely used in heavy-duty industrial applications such as conveyors, compressors, pumps, and process automation systems. Its PLC function and RS-485 connectivity allow easy integration into control networks, while its spring clamp I/O terminals ensure quick and reliable wiring. Designed for consistent output and low maintenance, it offers dependable performance under continuous operation.
The Mitsubishi FR-AF840-01800-60 Variable Frequency Drive combines Vector Control accuracy, 55kW motor capacity, and Safe Torque Off for reliable automation performance. As part of the FR-A/F800 SERIES, it upholds the engineering quality of Mitsubishi products. Ideal for industrial automation in India, it ensures high operational safety, precision, and long-term dependability in diverse manufacturing environments.
