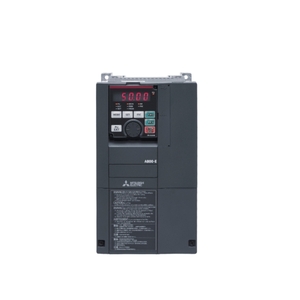

Mitsubishi FR-A840-00620-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A840-00620-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A840-00620-E2-60 |
Mitsubishi Variable Frequency Drive FR-A840-00620-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 44 |
| Rated Motor Capacity ND (kW) | 22 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK, MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss ND (W) | 520 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
| Weight (kg) | 15 |
| Width (mm) | 250 |
| Height (mm) | 400 |
| Standby Power Consumption (W) | 20 |
| Rated Output Current LD (A) | 57 |
| Rated Motor Capacity LD (kW) | 30 |
| Power Loss LD (W) | 675 |
| Rated Output Current SLD (A) | 62 |
| Rated Motor Capacity SLD (kW) | 30 |
| Power Loss SLD (W) | 740 |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| Rated Output Current HD (A) | 38 |
| Rated Motor Capacity HD (kW) | 18,5 |
| Power Loss HD (W) | 450 |
The Mitsubishi FR-A840-00620-E2-60 Variable Frequency Drive belongs to the Mitsubishi FR-A SERIES used in industrial automation motor control systems. The fr-a840-00620-2-60 supports 380–500V AC input, 30kW LD motor capacity, Ethernet communication, and vector control operation for induction and PM motors. Mitsubishi integrates MODBUS/TCP networking, Safe Torque Off protection, spring clamp terminal blocks, and CC-Link IE Field Network support into this Variable Frequency Drive for controlled industrial motor operation.
The Mitsubishi Variable Frequency Drive is used in conveyors, packaging systems, assembly equipment, automation panels, and industrial process handling applications. Engineers use the Mitsubishi FR-A840-00620-E2-60 for stable speed regulation, controlled motor acceleration, and continuous machine operation during industrial production processes. Ethernet communication and MODBUS/TCP networking support integration with industrial automation systems, while vector control improves operational consistency under changing load conditions. The drive supports induction motors and PM motors used across industrial manufacturing environments requiring regulated motor control.
The Mitsubishi FR-A840-00620-E2-60 Variable Frequency Drive combines 44A ND rated output current, 0.2–590Hz frequency range, Safe Torque Off protection, and Ethernet communication for industrial automation applications. Mitsubishi manufactures this Variable Frequency Drive for controlled AC motor operation and stable industrial communication requirements. The Mitsubishi FR-A840-00620-E2-60 remains suitable for conveyors, packaging machinery, assembly systems, and automated production equipment operating with induction or PM motors in industrial environments across India.
