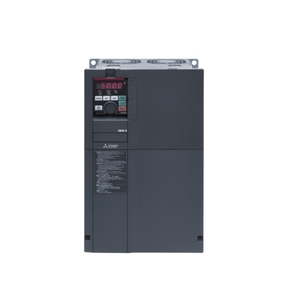

Mitsubishi FR-A840-00470-E2-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-A840-00470-E2-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-A840-00470-E2-60 |
Mitsubishi Variable Frequency Drive FR-A840-00470-E2-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-A SERIES |
| Type | FR-A800-E INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 500 |
| Max. Permissible Voltage (V) | 550 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 38 |
| Rated Motor Capacity ND (kW) | 18,5 |
| Frequency Range (Hz) | 0,2β590 |
| Control Method | VECTOR CONTROL (WITH FR-A8AP), V/F CONTROL, SOFT-PWM/HIGH FREQUENCY PWM, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | YES |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | FR-DU08 |
| Display Type | 5 DIGITS LED (12 SEGMENT) |
| PLC Function | YES |
| Program Memory | 6K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 12 |
| Digital Outputs (Transistor) | 5 |
| Digital Outputs (Relay) | 2 |
| Integrated Analogue Inputs | 3 |
| Integrated Analogue Outputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | OPTIONAL |
| USB | 1+1 MINI |
| Ethernet Port | 1 |
| Built-In Network | CC-LINK IE FIELD NETWORK, MODBUS/TCP, CC-LINK IE FIELD NETWORK BASIC |
| Leakage Current (mA) | 35(DELTA) / 2(STAR) |
| Power Loss ND (W) | 450 |
| Protection Class | IP20 |
| Depth (mm) | 190 |
| Weight (kg) | 15 |
| Width (mm) | 250 |
| Height (mm) | 400 |
| Standby Power Consumption (W) | 20 |
| Rated Output Current LD (A) | 43 |
| Rated Motor Capacity LD (kW) | 22 |
| Power Loss LD (W) | 520 |
| Rated Output Current SLD (A) | 47 |
| Rated Motor Capacity SLD (kW) | 22 |
| Power Loss SLD (W) | 565 |
| Shipping Approvals | ABS,BV,DNV GL,LR,NK |
| Rated Output Current HD (A) | 31 |
| Rated Motor Capacity HD (kW) | 15 |
| Power Loss HD (W) | 385 |
The Mitsubishi FR-A840-00470-E2-60 Variable Frequency Drive is designed for industrial motor control and automation applications requiring stable speed regulation. The fr-a840-00470-e2-60 supports 18.5kW motor capacity, 38A rated output current, Ethernet communication, and Vector Control technology for controlled industrial motor performance. Mitsubishi integrates this Variable Frequency Drive into the FR-A SERIES for conveyors, assembly machinery, processing equipment, and industrial automation systems requiring controlled acceleration, stable torque handling, and communication integration across production environments.
The Mitsubishi Variable Frequency Drive is commonly installed in conveyors, packaging systems, automation panels, and industrial assembly equipment. Engineers use the FR-A840-00470-E2-60 for maintaining stable motor operation, smooth speed adjustment, and reliable torque control during continuous industrial processes. The built-in Ethernet communication and MODBUS/TCP support help simplify automation connectivity between industrial devices and monitoring systems. Its IP20 protection and integrated EMC filter assist in maintaining dependable inverter performance inside industrial control panels and factory automation systems.
The Mitsubishi FR-A840-00470-E2-60 Variable Frequency Drive combines IP20 protection, Safe Torque Off support, and industrial communication capability for automation environments. Mitsubishi manufactures this Variable Frequency Drive for industrial motor control systems requiring dependable speed management and stable automation integration. The FR-A840-00470-E2-60 remains suitable for conveyors, packaging machinery, assembly systems, and industrial automation applications where reliable motor regulation, controlled drive operation, and communication support are necessary throughout continuous manufacturing operations.
