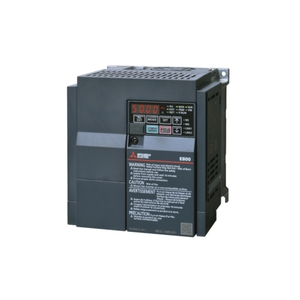

Mitsubishi FR-E840-0060EPA-60 Variable Frequency Drive
Technical Specifications of Mitsubishi Variable Frequency Drive FR-E840-0060EPA-60:
| Brand | Mitsubishi |
| Product Type | Variable Frequency Drive |
| Product | FR-E840-0060EPA-60 |
Mitsubishi Variable Frequency Drive FR-E840-0060EPA-60 Technical Specifications:
| Specification | Value |
|---|---|
| Series | FR-E800 SERIES |
| Type | FR-E800-ETH INVERTER |
| Minimum Rated Voltage (V) | 380 |
| Min. Permissible Voltage (V) | 323 |
| Maximum Rated Voltage (V) | 480 |
| Max. Permissible Voltage (V) | 528 |
| Current Type | AC |
| Phases | 3 |
| Rated Output Current ND (A) | 6 |
| Rated Motor Capacity ND (kW) | 2,2 |
| Frequency Range (Hz) | 0,2–590 |
| Control Method | V/F CONTROL, REAL SENSORLESS VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, MAGNETIC FLUX VECTOR CONTROL |
| Motor Type | INDUCTION MOTOR, PM MOTOR |
| Brake Chopper ED (%) | 100 |
| Integrated EMC Filter | NO |
| Safe Torque Off (STO) | YES |
| Regenerative (4Q) | NO |
| Integrated DC Choke | NO |
| Display | BUILT-IN |
| Display Type | 4 DIGITS LED |
| PLC Function | YES |
| Program Memory | 2K |
| Program Memory Unit | STEPS |
| Integrated Digital Inputs | 2 |
| Digital Outputs (Relay) | 1 |
| Integrated Analogue Inputs | 2 |
| IO Type of Terminal Block | SPRING CLAMP |
| Expandable | YES |
| RS-485 | NO |
| USB | 1 (MINI B) |
| Ethernet Port | 2 |
| Built-In Network | MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC, BACNET/IP |
| Leakage Current (mA) | 1,2 |
| Power Loss ND (W) | 76 |
| Protection Class | IP20 |
| Depth (mm) | 135 |
| Weight (kg) | 1,8 |
| Width (mm) | 140 |
| Height (mm) | 150 |
| Rated Output Current LD (A) | 6,9 |
| Rated Motor Capacity LD (kW) | 3 |
| Power Loss LD (W) | 89 |
The Mitsubishi FR-E840-0060EPA-60 Variable Frequency Drive belongs to the Mitsubishi FR-E800 SERIES used in industrial automation motor control systems. The fr-e840-0060epa-60 supports 380–480V AC input, 3kW LD motor capacity, Ethernet/IP communication, and vector control operation for induction and PM motors. Mitsubishi integrates MODBUS/TCP, BACnet/IP, CC-Link IE TSN, Safe Torque Off protection, and dual Ethernet ports into this Variable Frequency Drive for stable industrial motor operation.
The Mitsubishi Variable Frequency Drive is used in conveyors, packaging systems, assembly equipment, automation panels, and process handling applications. Engineers use the Mitsubishi FR-E840-0060EPA-60 for stable speed regulation, controlled motor acceleration, and continuous machine operation during industrial production processes. Ethernet/IP communication and industrial network support improve integration with automation systems, while vector control maintains operational consistency under changing load conditions. The drive supports induction motors and PM motors used across industrial manufacturing environments requiring regulated motor control.
The Mitsubishi FR-E840-0060EPA-60 Variable Frequency Drive combines 6A ND rated output current, 0.2–590Hz frequency range, Safe Torque Off protection, and Ethernet/IP communication for industrial automation applications. Mitsubishi manufactures this Variable Frequency Drive for controlled AC motor operation and stable industrial communication requirements. The Mitsubishi FR-E840-0060EPA-60 remains suitable for conveyors, packaging machinery, assembly systems, and automated production equipment operating with induction or PM motors in industrial environments across India.
