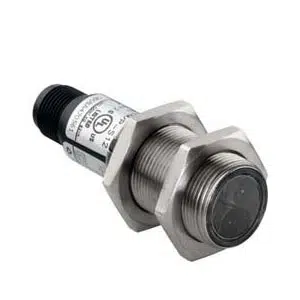

Leuze PRKL 318M/P-S12 | 50083184
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRKL 318M/P-S12 |
Leuze 0.15β11 Operating range retro-reflective photoelectric sensor PRKL 318M/P-S12 - 50083184 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.15 ... 11 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 5,000 Hz |
| Response time | 0.1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 18 mm x 50 mm |
| Housing material | Stainless steel |
| Metal housing | V2A |
| Lens cover material | Plastic |
| Housing color | Black Silver |
| Type of display | LED |
| Operational controls | 270Β° potentiometer |
| Ambient temperature, operation | -25 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze 0.15β11 Operating range retro-reflective photoelectric sensor PRKL 318M/P-S12 part no: 50083184 with budget-friendly prices. The Main Technical Parameters of PRKL 318M/P-S12, 50083184 include Cubic, Design Reflection principle, 18 mm x 50 mm Dimension, Laser, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.15 ... 11 m Sensing Distance, 4 -pin No. of pins, Stainless steel Housing material, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 0.15β11 Operating range retro-reflective photoelectric sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
