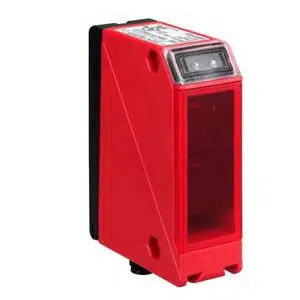

Leuze PRK 96K/P-1380-41 | 50025166
Technical Specifications of Leuze PRK 96K/P-1380-41 50025166:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.3 ... 8 m |
| Light Source | LED, Red |
Leuze M12 connector and Time function retro-reflective photoelectric sensor PRK 96K/P-1380-41 - 50025166 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | Time function |
| Sensing Distance | 0.3 ... 8 m |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | - |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | UB switching |
| Switching frequency | 1,000 Hz |
| Response time | - |
| Function | - |
| Type of connection | Connector |
| Thread size | M12 |
| Type | - |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Plastic |
| Metal housing | PC |
| Lens cover material | Plastic |
| Housing color | - |
| Type of display | LED |
| Operational controls | 270° potentiometer |
| Ambient temperature, operation | -40 ... 55 °C |
| Ambient temperature, storage | - |
| Degree of protection | IP 67 |
