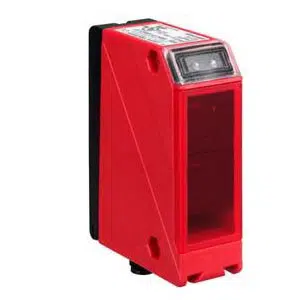

Leuze PRK 96K/P-3368-41 | 50041042
Technical Specifications of Leuze PRK 96K/P-3368-41 50041042:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.3 ... 26 m |
Light Source | LED, Red |
Leuze 0.3-26 m Operating range retro-reflective photoelectric sensor PRK 96K/P-3368-41 - 50041042 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | - |
Special version | - |
Sensing Distance | 0.3 ... 26 m |
Beam path | - |
Light source | LED, Red |
Wavelength | - |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC |
Switching Output 1 | Transistor, PNP |
Switching principle | Light switching |
Switching Output 2 | Transistor, PNP |
Switching principle | Dark switching |
Switching frequency | 1,000 Hz |
Response time | - |
Function | - |
Type of connection | Connector |
Thread size | M12 |
Type | Plastic |
Material | - |
No. of pins | 4 -pin |
Encoding | A-coded |
Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
Housing material | Plastic |
Metal housing | PC |
Lens cover material | Plastic |
Housing color | - |
Type of display | LED |
Operational controls | 270° potentiometer |
Ambient temperature, operation | -40 ... 55 °C |
Ambient temperature, storage | - |
Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze 0.3-26 m Operating range retro-reflective photoelectric sensor PRK 96K/P-3368-41 part no: 50041042 at attractive prices. Key Technical Features of PRK 96K/P-3368-41, 50041042 are Cubic, Design Reflection principle, 30 mm x 90 mm x 70 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.3 ... 26 m Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze 0.3-26 m Operating range retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
