In most procurement cycles, PRK5B-4X-M8 is considered with P&F Photo Sensor, Leuze Proximity Sensor and Leuze Ls5B Xx 200 M12, giving decision-makers confidence that theyβve chosen the most dependable component.

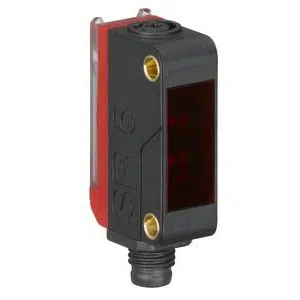

Leuze PRK5B/4X-M8 | 50145252
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK5B/4X-M8 |
Leuze LED light source and IP67 enclosure rating retro-reflective photoelectric sensor PRK5B/4X-M8 - 50145252 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Metal housing | PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze LED light source and IP67 enclosure rating retro-reflective photoelectric sensor PRK5B/4X-M8 part no: 50145252 at attractive prices. Key Technical Features of PRK5B/4X-M8, 50145252 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching
(dark switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze LED light source and IP67 enclosure rating retro-reflective photoelectric sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
