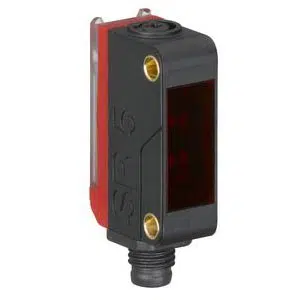

Leuze PRK5B.1/PX-M8 | 50145262
Technical Specifications of Leuze PRK5B.1/PX-M8 50145262:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.02 ... 5 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze M8 thread size and four pins retro-reflective photoelectric sensor PRK5B.1/PX-M8 - 50145262 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | - |
Special version | - |
Sensing Distance | 0.02 ... 5 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 645 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, PNP |
Switching principle | Dark switching (light switching by reversing polarity of UB) |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
Housing material | Plastic |
Metal housing | PC-ABS |
Lens cover material | Plastic |
Housing color | Black Red |
Type of display | LED |
Operational controls | 270° potentiometer |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Mail Us for your needs in Leuze M8 thread size and four pins retro-reflective photoelectric sensor PRK5B.1/PX-M8 part no: 50145262 with budget-friendly prices. The Main Technical Parameters of PRK5B.1/PX-M8, 50145262 include Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching
(light switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M8 thread size and four pins retro-reflective photoelectric sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
