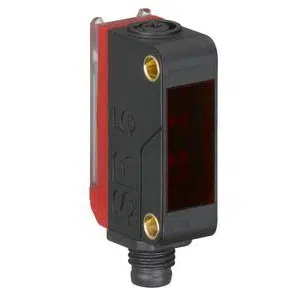

Leuze PRK5B.M1/4X-M8 | 50149297
Technical Specifications of Leuze PRK5B.M1/4X-M8 50149297:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.03 ... 4.5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze red LED light source and 645 nm wavelength retro-reflective sensor PRK5B.M1/4X-M8 - 50149297 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | Detection of bottle container Detection of semi-transparent media Detection of transparent films |
| Special version | - |
| Sensing Distance | 0.03 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching (dark switching by reversing polarity of UB) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
| Housing material | Plastic |
| Metal housing | PC-ABS |
| Lens cover material | Plastic |
| Housing color | Black Red |
| Type of display | LED |
| Operational controls | 270° potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
IndMALL Automation Dealing offers Leuze red LED light source and 645 nm wavelength retro-reflective sensor PRK5B.M1/4X-M8 part no: 50149297 at attractive prices. Key Technical Features of PRK5B.M1/4X-M8, 50149297 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching
(dark switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.03 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Navigate Your Needs with a Quote for your requirement of Leuze red LED light source and 645 nm wavelength retro-reflective sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
