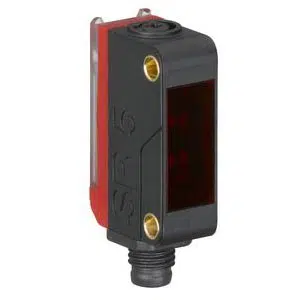

Leuze PRK5B.D/2X-M8 | 50146119
Technical Specifications of Leuze PRK5B.D/2X-M8 50146119:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.04 ... 4 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze 0.03-5 m Operating range limit retro-reflective photoelectric sensor PRK5B.D/2X-M8 - 50146119 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | Detection of stretch-wrapped objects |
Special version | - |
Sensing Distance | 0.04 ... 4 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 645 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, NPN |
Switching principle | Light switching (dark switching by reversing polarity of UB) |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 11 mm x 32.4 mm x 20 mm |
Housing material | Plastic |
Metal housing | PC-ABS |
Lens cover material | Plastic |
Housing color | Black Red |
Type of display | LED |
Operational controls | - |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Ask for the Pricing of Leuze 0.03-5 m Operating range limit retro-reflective photoelectric sensor PRK5B.D/2X-M8 part no: 50146119 at unbeatable prices. Detailed Specifications of PRK5B.D/2X-M8, 50146119 feature Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching
(dark switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.04 ... 4 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.03-5 m Operating range limit retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
