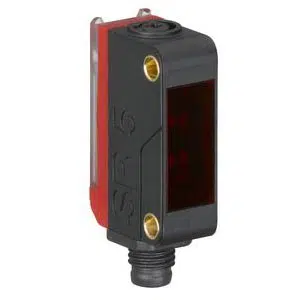

Leuze PRK5B/2X-M8 | 50145253

Brand	Leuze
Product Type	Photoelectric Sensor
Product	PRK5B/2X-M8

Leuze -40 to 60 °C operation temperature retro-reflective photoelectric sensor PRK5B/2X-M8 - 50145253 Technical Specifications:

Specification	Value
Design	Cubic
Operating principle	Reflection principle
Application	-
Special version	-
Sensing Distance	0.02 ... 5 m, With reflector TK(S) 100x100
Beam path	-
Light source	LED, Red
Wavelength	645 nm
Type of light spot geometry	-
Supply voltage UB	10 ... 30 V, DC, Incl. residual ripple
Switching Output 1	Transistor, NPN
Switching principle	Light switching (dark switching by reversing polarity of UB)
Switching Output 2	-
Switching principle	-
Switching frequency	500 Hz
Response time	1 ms
Function	Signal OUT Voltage supply
Type of connection	Connector
Thread size	M8
Type	Male
Material	Plastic
No. of pins	4 -pin
Encoding	-
Dimension (W x H x L)	11 mm x 32.4 mm x 20 mm
Housing material	Plastic
Metal housing	PC-ABS
Lens cover material	Plastic
Housing color	Black Red
Type of display	LED
Operational controls	270° potentiometer
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67

Talk to Our Engineer for Leuze -40 to 60 °C operation temperature retro-reflective photoelectric sensor PRK5B/2X-M8 part no: 50145253 with exclusive offers. Core System Specifications of PRK5B/2X-M8, 50145253 are Cubic, Design Reflection principle, 11 mm x 32.4 mm x 20 mm Dimension, LED, Red Light source, Transistor, NPN Switching Outputs 1, Light switching (dark switching by reversing polarity of UB) Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.02 ... 5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze -40 to 60 °C operation temperature retro-reflective photoelectric sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
