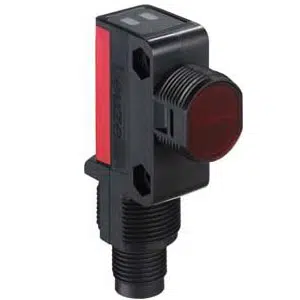

Leuze PRK28/4P-M12 | 50117924
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | PRK28/4P-M12 |
Leuze M12 Connector, A-coded, polarized retro-reflective photoelectric sensor PRK28/4P-M12 - 50117924 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.02 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 620 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 46.5 mm x 31.8 mm |
| Housing material | Plastic |
| Metal housing | ABS |
| Lens cover material | Plastic |
| Housing color | Black / Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 Β°C |
| Ambient temperature, storage | -40 ... 70 Β°C |
| Degree of protection | IP 67 |
Call us for the Leuze PRK28/4P-M12 polarized retro-reflective photoelectric sensor with an M12 A-coded connector (Part No: 50117924) at the lowest pricing. The sensor features a cubic design with a reflection principle. Key technical specifications include dimensions of 15 mm x 46.5 mm x 31.8 mm, a red LED light source, PNP transistor switching output (1), and a light-switching principle. It operates at 10-30V DC, with a sensing distance of 0.02 to 4.5 m when used with a TK(S) 100x100 reflector. The sensor has a 4-pin connection and is housed in plastic, providing IP67 protection.
Looking for the PRK28/4P-M12 datasheet or PRK28/4P-M12 PDF? Need the PRK28/4P-M12 price? Get a custom quote today and experience our more affordable pricing and personalized support, setting us apart from other distributors and dealers.
