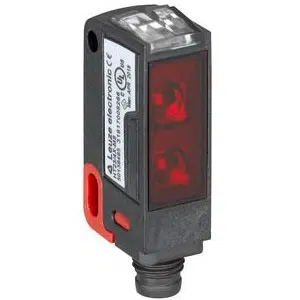

Leuze PRK23/4X-M8 | 50138471
Technical Specifications of Leuze PRK23/4X-M8 50138471:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.1 ... 4.5 m, With reflector TK(S) 100x100 |
| Light Source | LED, Red |
Leuze 0.1 to 6 meters Operating range limit retro-reflective photoelectric sensor PRK23/4X-M8 - 50138471 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.1 ... 4.5 m, With reflector TK(S) 100x100 |
| Beam path | - |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | - |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Metal housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Black / Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Ask for the Pricing of Leuze 0.1 to 6 meters Operating range limit retro-reflective photoelectric sensor PRK23/4X-M8 part no: 50138471 at unbeatable prices. Detailed Specifications of PRK23/4X-M8, 50138471 feature Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 0.1 to 6 meters Operating range limit retro-reflective photoelectric sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
