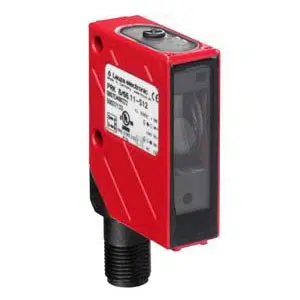

Leuze PRK 8/44-S12 | 50036360
Technical Specifications of Leuze PRK 8/44-S12 50036360:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Reflection principle |
| Sensing Distance | 0.1 ... 6.4 m |
| Light Source | LED, Red |
Leuze light switching and dark switching retro-reflective sensor PRK 8/44-S12 - 50036360 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Reflection principle |
| Application | - |
| Special version | - |
| Sensing Distance | 0.1 ... 6.4 m |
| Beam path | Divergent |
| Light source | LED, Red |
| Wavelength | 660 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, NPN |
| Switching principle | Dark switching |
| Switching frequency | 1,500 Hz |
| Response time | 0.33 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector, Turning, 90° |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 15 mm x 48 mm x 38 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | - |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Talk to Our Engineer for Leuze light switching and dark switching retro-reflective sensor PRK 8/44-S12 part no: 50036360 with exclusive offers. Core System Specifications of PRK 8/44-S12, 50036360 are Cubic, Design Reflection principle, 15 mm x 48 mm x 38 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.1 ... 6.4 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze light switching and dark switching retro-reflective sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
