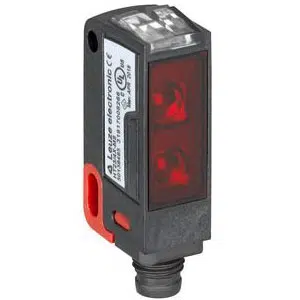

Leuze PRK23/PX-M8 | 50138475
Technical Specifications of Leuze PRK23/PX-M8 50138475:
Spec | Value |
---|---|
Design | Cubic |
Operating Principle | Reflection principle |
Sensing Distance | 0.1 ... 4.5 m, With reflector TK(S) 100x100 |
Light Source | LED, Red |
Leuze one digital output and polarizing filter retro-reflective sensor PRK23/PX-M8 - 50138475 Technical Specifications:
Specification | Value |
---|---|
Design | Cubic |
Operating principle | Reflection principle |
Application | - |
Special version | - |
Sensing Distance | 0.1 ... 4.5 m, With reflector TK(S) 100x100 |
Beam path | - |
Light source | LED, Red |
Wavelength | 645 nm |
Type of light spot geometry | - |
Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
Switching Output 1 | Transistor, PNP |
Switching principle | Dark switching |
Switching Output 2 | - |
Switching principle | - |
Switching frequency | 500 Hz |
Response time | 1 ms |
Function | Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Plastic |
No. of pins | 4 -pin |
Encoding | - |
Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
Housing material | Plastic |
Metal housing | PC-ABS |
Lens cover material | Plastic / PMMA |
Housing color | Black / Red |
Type of display | LED |
Operational controls | - |
Ambient temperature, operation | -40 ... 60 °C |
Ambient temperature, storage | -40 ... 70 °C |
Degree of protection | IP 67 |
Get A Quote for Leuze one digital output and polarizing filter retro-reflective sensor PRK23/PX-M8 part no: 50138475 at the best price. Here are the brief Technical Specifications of PRK23/PX-M8, 50138475 are Cubic, Design Reflection principle, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs 1, Dark switching Switching principle, 10 ... 30 V, DC, Incl. residual ripple Supply voltage UB, 0.1 ... 4.5 m, With reflector TK(S) 100x100 Sensing Distance, 4 -pin No. of pins, Plastic Housing material, IP 67 degree of protection. It's Time to get a Quote for your requirement of Leuze one digital output and polarizing filter retro-reflective sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
