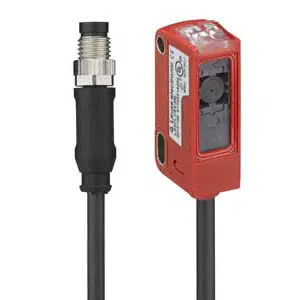

Leuze LS3CL1/XX-200-M8 Photoelectric Sensor
The Leuze LS3CL1/XX-200-M8 Photoelectric Sensor (Part No: 50137940 ) offers a Throughbeam principle, 2.5 mm x 2 mm [1,000 mm] distance, 200 mm PUR Cable with M8 Connector 4-pin .. Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LSSR 3 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LS3CL1/XX-200-M8 |
Leuze LS3CL1/XX-200-M8 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 3C Series |
| Operating principle | Throughbeam principle |
| Device type | Transmitter |
| Operating range | 0 ... 5 m; Guaranteed operating range |
| Operating range limit | 0 ... 10 m; Typical operating range |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Light spot size [at sensor distance] | 2.5 mm x 2 mm [1,000 mm] |
| Type of light spot geometry | elliptic |
| Power Supply | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 20 mA |
| Readiness delay | 300 ms |
| Connection Function | Voltage supply |
| Type of Connection | 200 mm PUR Cable with M8 Connector |
| Number of conductors or Pins | 4-pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic: PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of fastening | Through-hole mounting Via optional mounting device |
| Type of display | LED |
| Ambient temperature | Operation: -40 ... 55 Β°C Storage: -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 20 g |
Give Us a Call for Leuze Red Housing Color Transmitter Sensor LS3CL1/XX-200-M8 part no: 50137940 at the lowest pricing. In-depth Technical Analysis of LS3CL1/XX-200-M8, 50137940 feature 3C series, Transmitter device, 0 ... 5 m; Guaranteed operating range operating range, 0 ... 10 m; Typical operating range operating range limit, Collimated beam path, Laser, Red light source, 650 nm wavelength, 2.5 mm x 2 mm [1,000 mm]light spot size, elliptic light spot geometry, 10 ... 30 V, DC power supply, 200 mm PUR Cable with M8 Connector , 4-pin , 11.4 mm x 34.2 mm x 18.3 mm dimensions, Red housing color, Through-hole mounting Via optional mounting device fastening, LED display, IP 67, IP 69K degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Red Housing Color Transmitter Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
