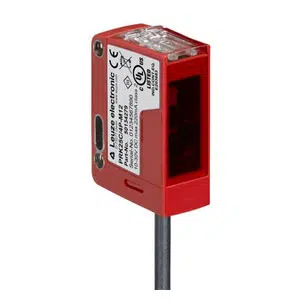

Leuze LE25CI.XR1/2N Photoelectric Sensor
The Leuze LE25CI.XR1/2N Photoelectric Sensor (Part No: 50147923 ) offers a - operating range, Transistor, NPN output, 2000 mm PUR Cable 4 -wire . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the LS Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | LE25CI.XR1/2N |
Leuze LE25CI.XR1/2N Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | LS 25C Series |
| Operating principle | Throughbeam principle |
| Device type | Receiver |
| Operating range | - |
| Power Supply | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Number of digital switching outputs | 2 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching Principle | Light switching/Dark switching |
| Switching frequency | 100 Hz |
| Response time | 5 ms |
| Readiness delay | 300 ms |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | 2000 mm PUR Cable |
| Number of conductors or Pins | 4 -wire |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic: ABS |
| Lens cover material | Plastic |
| Housing color | Red |
| Type of display | - |
| Ambient temperature | operation -40 ... 60 Β°C storage -40 ... 70 Β°C |
| Degree of protection | IP 67, IP 69K |
| Net weight | 55 g |
IndMALL Offers Leuze 100 Hz Switching Frequency Through Beam Receiver Sensor LE25CI.XR1/2N part no: 50147923 at economical Choices. Product Tech Specs of LE25CI.XR1/2N, include 25C
series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 20 mA current, 2 Piece(s)
digital switching output, Transistor, NPN output, Light switching/Dark switching, 100 Hz frequency, 2000 mm PUR Cable, 4 -wire, 15 mm x 42.7 mm x 30 mm
dimensions, Red housing color, IP 67, IP 69K degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 100 Hz Switching Frequency Through Beam Receiver Sensor.
