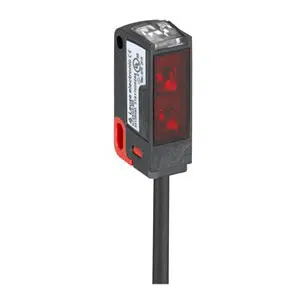

Leuze IP67 Degree of Protection Through Beam Receiver Sensor LE23/4, 50138445 Technical Specifications:
Specification
Value
Series
23
Operating principle
Throughbeam principle
Device type
Receiver
Operating range
0 ... 8 m
Power Supply
10 ... 30 V, DC, Incl. residual ripple
Open-circuit current
0 ... 15 mA
Number of digital switching outputs
1 Piece(s)
Switching Output
Transistor, PNP
Switching Principle
Light switching
Switching frequency
500 Hz
Response time
1 ms
Readiness delay
300 ms
Connection Function
Signal OUT
Voltage supply
Type of Connection
2000 mm PUR Cable
Number of conductors or Pins
3 -wire
Dimension (W x H x L)
11.4 mm x 34.2 mm x 18.3 mm
Housing material
Plastic: PC-ABS
Lens cover material
Plastic / PMMA
Housing color
Black, Red
Type of display
LED
Ambient temperature
operation -40 ... 60 °C
storage -40 ... 70 °C
Degree of protection
IP 67
Net weight
50 g
Please speak to our Technical Engineer for Leuze IP67 Degree of Protection Through Beam Receiver Sensor LE23/4 part no: 50138445 at attractive prices. Technical Specs Summary of LE23/4, are 23 series, Throughbeam principle
, Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 1 Piece(s) digital switching output, Transistor, PNP output, Light switching
, 500 Hz frequency, 2000 mm PUR Cable, 3 -wire, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Black, Red
housing color, LED display, IP 67 degree of protection. Match Your Needs with a Quote for your requirement of Leuze IP67 Degree of Protection Through Beam Receiver Sensor.
