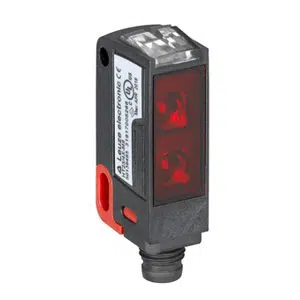

LE23/4X-M8: 50138493 - Leuze M8 Connector 4-pin Through Beam Receiver Sensor

Leuze LE23/4X-M8 50138493
Datasheet
SpecValue
Operating PrincipleThroughbeam principle
Device TypeReceiver
Operating Range0 ... 8 m
Switching OutputTransistor, PNP

Leuze M8 Connector 4-pin Through Beam Receiver Sensor LE23/4X-M8, 50138493 Technical Specifications:

SpecificationValue
Series23
Operating principleThroughbeam principle
Device typeReceiver
Operating range0 ... 8 m
Power Supply10 ... 30 V, DC, Incl. residual ripple
Open-circuit current0 ... 15 mA
Number of digital switching outputs1 Piece(s)
Switching OutputTransistor, PNP
Switching PrincipleLight switching
Switching frequency500 Hz
Response time1 ms
Readiness delay300 ms
Connection FunctionSignal OUT Voltage supply
Type of ConnectionM8 Connector
Number of conductors or Pins4-pin
Dimension (W x H x L)11.4 mm x 34.2 mm x 18.3 mm
Housing materialPlastic: PC-ABS
Lens cover materialPlastic / PMMA
Housing colorBlack, Red
Type of displayLED
Ambient temperatureoperation -40 ... 60 °C storage -40 ... 70 °C
Degree of protectionIP 67
Net weight20 g
Talk to Our Engineer for Leuze M8 Connector 4-pin Through Beam Receiver Sensor LE23/4X-M8 part no: 50138493 with exclusive offers. Core System Specifications of LE23/4X-M8, are 23 series, Throughbeam principle , Receiver device, 10 ... 30 V, DC, Incl. residual ripple power supply, 0 ... 15 mA current, 1 Piece(s) digital switching output, Transistor, PNP output, Light switching , 500 Hz frequency, M8 Connector, 4-pin, 11.4 mm x 34.2 mm x 18.3 mm dimensions, Black, Red housing color, LED display, IP 67 degree of protection. Don't Miss Out on a Quote for your requirement of Leuze M8 Connector 4-pin Through Beam Receiver Sensor.
