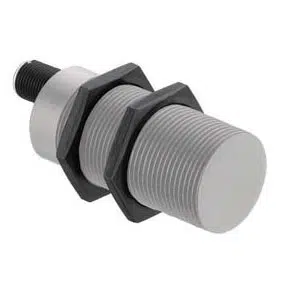

Leuze LCS-1M30P-F15NNC-M12 Proximity Sensor
Leuze LCS-1M30P-F15NNC-M12 proximity sensor provides 2–15 mm sensing distance with NPN NC output and 10–30 V DC supply operation. This Leuze M30 79mm Capacitive Sensor LCS-1M30P-F15NNC-M12 from Leuze is part of the Proximity Sensor portfolio and the LCS-1 Series. It supports embedded installation, cylindrical M30 housing, adjustable sensitivity, and IP67 protection for industrial automation environments.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | LCS-1M30P-F15NNC-M12 |
Leuze LCS-1M30P-F15NNC-M12 Proximity Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Series | LCS-1 Series |
| Sensing Distance | 2 ... 15 mm |
| Assured switching distance | 15 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 15 mA |
| Rated operating current | 100 mA |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Output | Transistor, NPN |
| Switching principle | NC (normally closed) |
| Switching frequency | 100 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of connection | M12 Connector |
| No. of pins | 4 -pin |
| Design | Cylindrical |
| Thread size | M30 x 1.5 mm |
| Dimension (Ø x L) | 30 mm x 79 mm |
| Type of installation | Embedded |
| Housing material | Plastic |
| Cover material | Plastic, Polybutylene (PBT)/polyamide (PA 12) |
| Number of LEDs | 2 Piece(s) |
| Operational controls | Multiturn potentiometer (20 turns) |
| Function of the operational control | Sensitivity adjustment |
| Switching distance, adjustable | Yes |
| Ambient temperature | -25 ... 85 °C |
| Degree of protection | IP 67 |
| Weight | 40 g |
The Leuze M30 79mm Capacitive Sensor LCS-1M30P-F15NNC-M12 is a proximity sensor designed for non-contact detection in industrial automation systems. The LCS-1M30P-F15NNC-M12 operates with a 2–15 mm sensing distance, NPN normally closed output, 100 mA rated operating current, and 10–30 V DC supply. It belongs to the LCS series and is intended for embedded mounting in machines and control panels.
This proximity sensor is commonly applied in conveyors, packaging machinery, automated assembly lines, and material handling systems. The M30 threaded cylindrical design ensures secure mechanical mounting, while the M12 connector provides stable electrical connection. Adjustable sensitivity supports consistent switching behavior across varying materials and operating conditions.
The Leuze LCS-1M30P-F15NNC-M12 proximity sensor offers defined electrical characteristics and environmental protection for continuous industrial use. Its sensing range, switching principle, and housing dimensions enable predictable integration. As a Leuze LCS-series device, this model is suitable for industrial automation applications requiring reliable capacitive sensing.
