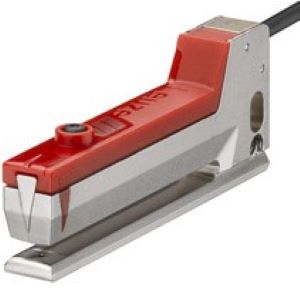

Leuze Fork Photoelectric Sensor
GS 63B/6D.3
Leuze GS 63B/6D.3 Technical Features:
| Series | 63 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Special version | Teach input |
| Light source | LED, Infrared |
| Wavelength | 940 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage | 10 … 30 V, DC |
| Open-circuit current | 0 … 30 mA |
| Number of teach inputs | 1 Piece(s) |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Active switching state | High |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal on label |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Teach input Voltage supply |
| Type of connection | Cable |
| Cable length | 2,000 mm |
| Number of conductors | 5 -wire |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 61 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 80 mm |
| Housing material | Metal Plastic |
| Metal housing | Diecast zinc, chemically nickel-plated |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 100 g |
| Housing color | Red Silver |
| Type of fastening | Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach button |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 67 |
| Protection class | III |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
Product Documentation: GS 63B/6D.3
Here is the main technical specification of Leuze Fork Sensor GS 63B/6D.3: Fork type GS 63 series, Optical, Label width 2mm, Label gap 2mm, LED light source, Supply voltage 10 to 30 VDC, Cable length 2000mm, 5 -wire Conductors.
If you want to know all range Leuze Label Gap Sensor models you can check.
Related Products: GS 63B/6D.3 – 50146327
GS 61/6D.2425-S12 – 50145357
Leuze Label Gap Sensor, Model No: GS 61/6D.2425-S12, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Part Number: 50145357, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable with Connector, Cable length:425 mm, Thread size: M12, Number of pins: 5-pin.

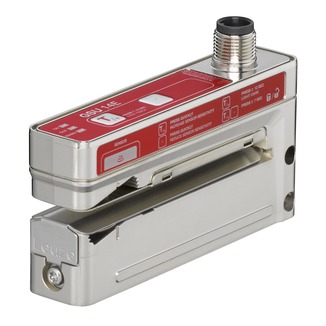

GSU14E/16T.3-M12V – 50142878
Leuze Label Gap Sensor, Model No: GSU14E/16T.3-M12V, Part Number: 50142878, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Series: Fork type GS 14, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
IGS 63B/6.3 – 50128013
Label Gap Sensor, Model No: IGS 63B/6.3, Part Number: 50128013, Series: Fork type IGS 63, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Principle of physics: Optical Sensor, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5-wire.

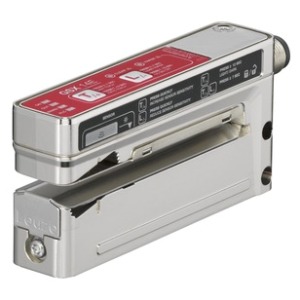

GSX14E/LGT.3-M12 – 50144142
