Leuze Fork Photoelectric Sensor
GS 61/6D.2425-S12
Leuze GS 61/6D.2425-S12 Technical Features:
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Light source | LED, Infrared |
| Wavelength | 940 nm |
| Transmitted-signal shape | Pulsed |
| Supply voltage | 10 … 30 V, DC |
| Open-circuit current | 0 … 30 mA |
| Number of teach inputs | 1 Piece(s) |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Active switching state | High |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal on label |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with Connector |
| Cable length | 425 mm |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 70 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach button |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Protection class | III |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
Product Documentation: GS 61/6D.2425-S12
Here is the main technical specification of Leuze Fork Sensor GS 61/6D.2425-S12: Fork type GS 61 series, Optical, Label width 2 mm, Label gap 2 mm, LED light source, Supply voltage 10 to 30 VDC, Cable with Connector type, Cable length 425 mm, M12 Connector 4-pin.
If you want to know all range Leuze Label Gap Sensor models you can check.
Related Products: GS 61/6D.2425-S12 – 50145357

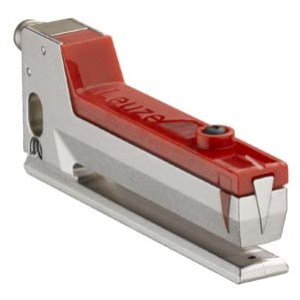

GS 63B/66.3-S8 – 50143910
Leuze Label Gap Sensor, Model No: GS 63B/66.3-S8, Part Number: 50143910, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Series: Fork type GS 63, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GSX14E/LWT.3-M12 – 50142865

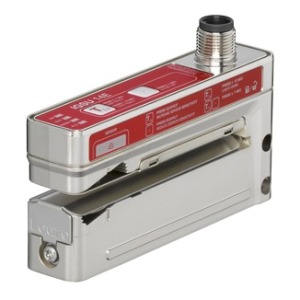

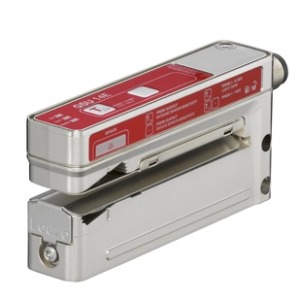

Label Gap Sensor, Model No: GSX14E/LWT.3-M12, Part Number: 50142865, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Connection: Connector type, Thread size: M12, Number of pins: 5-pin, Supply voltage: 18 to 30 VDC.
IGSU14E/LWT.3-M12V – 50142871
Leuze Label Gap Sensor, Model No: IGSU14E/LWT.3-M12V, Part Number: 50142871, Series: Fork type GS 14, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Principle of physics: Ultrasonic Fork Sensor, Number of pins: 5-pin.
GSU14E/LGT.3-M12 – 50142875
Leuze Label Gap Sensor, Model No: GSU14E/LGT.3-M12, Part Number: 50142875, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label gap: 2 mm, Label width: 4 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/6.3-S8 – 50128004
Label Gap Sensor, Model No: GS 63B/6.3-S8, Part Number: 50128004, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin, Light source: Infrared LED.
GSX14E/1WT.3-M12V – 50142868
Label Gap Sensor, Model No: GSX14E/1WT.3-M12V, Part Number: 50142868, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Thread size: M12, Supply voltage: 18 to 30 VDC, Connection: Connector type, Number of pins: 5-pin.

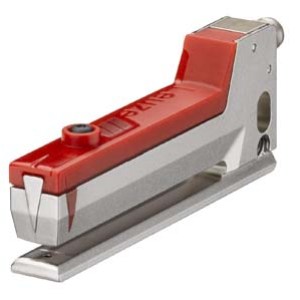

GS 63B/6D.3-S8V – 50128009
Label Gap Sensor, Model No: GS 63B/6D.3-S8V, Part Number: 50128009, Principle of physics: Optical Sensor, Series: Fork type GS 63, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

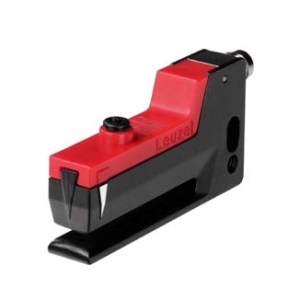

GS 61/6D – 50110770
Leuze Label Gap Sensor, Model No: GS 61/6D, Part Number: 50110770, Series: Fork type GS 61, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire, Principle of physics: Optical Fork Sensor.
GS 63B/6.3,200-S8 – 50129248
Label Gap Sensor, Model No: GS 63B/6.3,200-S8, Part Number: 50129248, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Thread size: M8, Connection: Cable with Connector, Cable length: 200 mm, Number of pins: 4-pin.

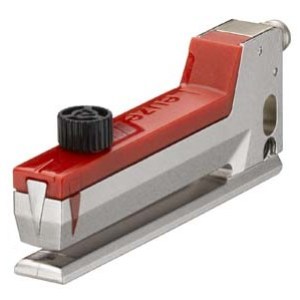

GS 63B/6-S8V – 50128012
