IFM Photoelectric Sensors – Reflective & Distance Sensor
The IFM Photoelectric Sensor, manufactured by IFM, uses established operating principles such as through-beam transmission, retro-reflective return paths, and diffuse reflection to detect object presence, part positioning, and material contrast. These sensors incorporate optical emitters, receivers, signal processing circuits, and standardized mechanical housings in cylindrical or rectangular formats, with electrical interfaces including PNP, NPN, or relay outputs for industrial controllers.
One reference to IFM anchors the entity within its broader sensing portfolio for semantic continuity. Classification variants include the IFM through beam sensor, reflective detection, background suppression designs, and object verification types, depending on required application characteristics. An IFM photoelectric sensor or IFM photo sensor is defined by optical detection technology, emitter–receiver structural configuration, classified sensing modes, and standardized industrial interface types.

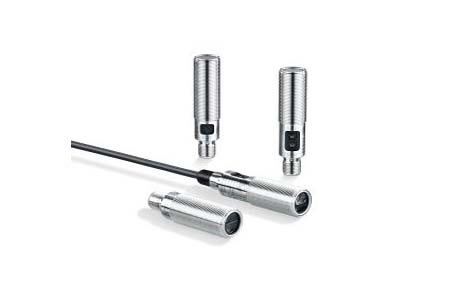

IFM Photoelectric Sensor: Type M18
- Design: M18 threaded, robust metal housing.
- Dimensions: Lengths vary (e.g., 60 mm, 72 mm, 80.4 mm).
- Range: Up to 5 m for retro-reflective, less than 25 m for through-beam.
- Features: Precise background suppression, and high switching frequencies.
- Application: Suited for industrial environments, and reliable object detection.

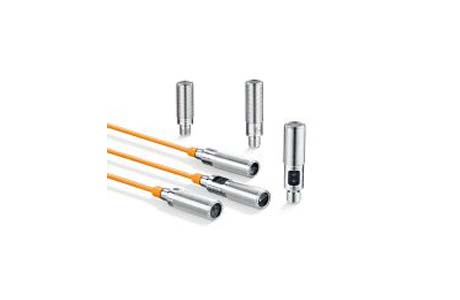

IFM Through Beam Sensor: Type M18 for wet areas
- Design: M18 threaded, stainless steel housing.
- Range: Diffuse reflection (up to 800 mm), retro-reflective (up to 4 m), through-beam (less than 20 m).
- Features: High protection, suitable for aggressive environments.
- Application: Ideal for the food industry, including cheese plants and breweries.
- Setup: Fixed ranges, easy integration with system components.
IFM Photo Sensors: Type M18 Cube in metal housing
- Design: Compact, robust metal housing with lateral M18 thread.
- Dimensions: Approximately 52.6 x 19 x 36 mm.
- Range: Diffuse reflection sensors (up to 200 mm), retro-reflective sensors (0.1 to 4 m), and through-beam sensors (up to 20 m).
- Features: Long ranges, suitable for applications with limited installation space.

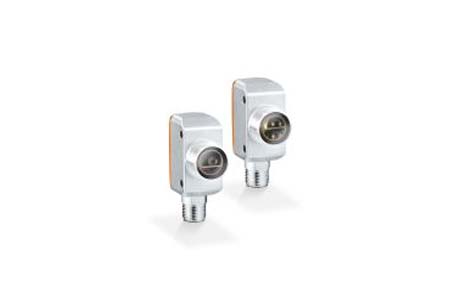

Photoelectric Sensor IFM: Type M18 Cube for wet areas
- Design: Compact OG-Cube housing, stainless steel.
- Dimensions: Approximately 52.9 x 20 x 34.6 mm.
- Range: Through-beam sensors (up to 15 m), diffuse reflection sensors (up to 200 mm).
- Features: High protection rating IP 69K, suitable for food industry environments.
- Application: Ideal for cheese plants, breweries, meat industry.
IFM Reflective Sensor: Rectangular Design O5
- Design: Rectangular O5, versatile installation and mounting.
- Dimensions: Approximately 56 x 18.2 x 46.8 mm.
- Range: Diffuse reflection (up to 1800 mm), retro-reflective (up to 10 m), and through-beam (up to 25 m).
- Features: Long ranges, easy setting by teaching “on” and “off” states.
- Variants: Red light, infrared light, and laser types.
- Application: Suitable for various factory automation tasks.

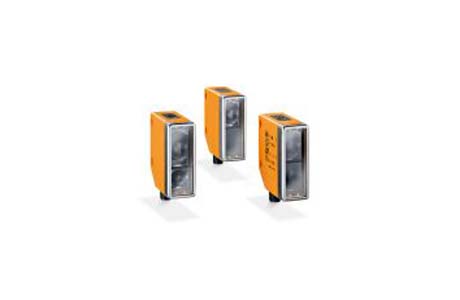

IFM Photo Sensor: Rectangular Design O4
- Design: Rectangular O4.
- Dimensions: 74.4 x 27 x 63.8 mm.
- Range: Diffuse reflection (up to 2600 mm), retro-reflective (up to 22 m), through-beam (up to 80 m).
- Features: Long ranges, adjustable suppression.
- Application: Wood, paper, automotive, transport, steel processing.
- Adjustability: Potentiometer or pushbutton, fixed settings available.

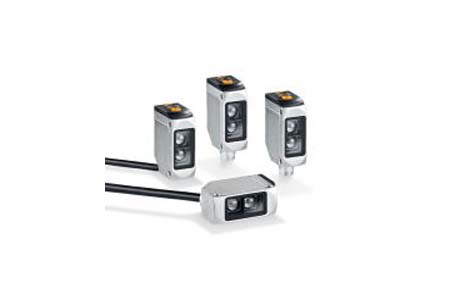

Photoelectric Sensors IFM: Small Rectangular Design O6
- Design: Small rectangular O6, stainless steel housing.
- Dimensions: Approximately 41.3 x 13 x 21 mm.
- Range: Diffuse reflection (2 to 500 mm), retro-reflective (up to 5 m), and through-beam (up to 10 m).
- Features: High protection rating IP 68 / IP 69K, suitable for harsh environments.
- Application: Ideal for the food industry, ensures precise object detection.

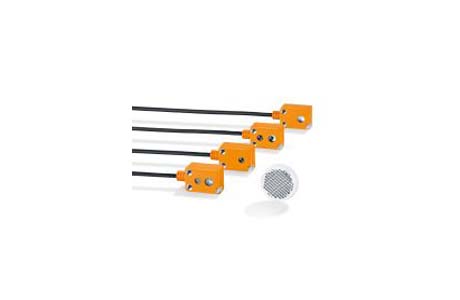

IFM Retroreflective Sensor: Small Rectangular Design O7
- Design: Small rectangular O7.
- Dimensions: 20.3 x 15 x 9 mm.
- Range: Diffuse reflection (3 to 100 mm), retro-reflective (up to 1 m), through-beam (up to 1.5 m).
- Features: Precise suppression, small light spot.
- Application: Suitable for limited space applications.
- Installation: Easy alignment, immediate operation readiness.

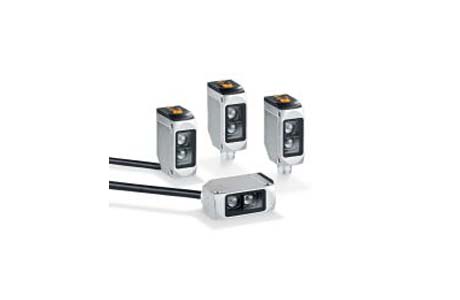

IFM Diffuse Sensor: Small Rectangular Design O6
- Design: Small rectangular O6.
- Dimensions: 35.4 x 13 x 21 mm.
- Range: Diffuse reflection (2 to 600 mm), retro-reflective (up to 8 m), through-beam (up to 15 m).
- Features: Precise detection, minimal scattered light.
- Installation: M8 connector, M12 pigtail, PUR cable options.

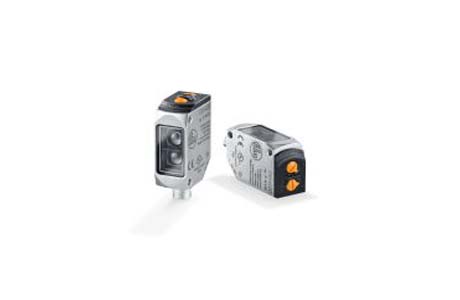

IFM Reflective Sensors: Coolants and Lubricants
- Design: Stainless steel housing.
- Dimensions: 34.8 x 13 x 21 mm / 41.3 x 13 x 21 mm.
- Range: Diffuse reflection (2 to 500 mm), retro-reflective (up to 5 m), through-beam (up to 10 m).
- Features: High ingress resistance, background suppression.
- Application: Machine tools, metalworking, automotive industry.
- Protection: IP 68 / IP 69K, oil and coolant resistant.
- Visibility: Clear LED visibility in bright conditions.
IFM Diffuse Sensors: Miniature Type O8
- Design: Compact housing.
- Dimensions: 28.1 x 8.1 x 14.4 mm.
- Range: Diffuse reflection (1 to 80 mm), retro-reflective (up to 1.8 m), through-beam (up to 3 m).
- Features: Precise suppression, detects small/reflective objects.
- Application: Robotics, assembly in tight spaces.
- Adjustability: IO-Link range setting.
- Visibility: Visible red light for setup.

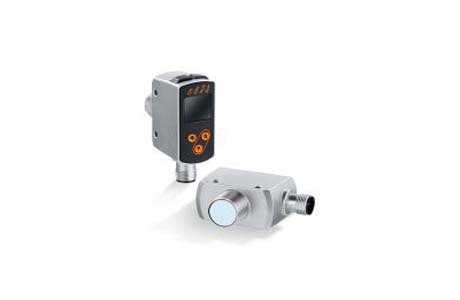

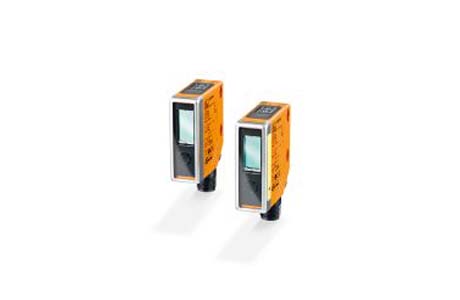

IFM Photoelectric Distance Sensor: Type O5 with Display
- Measurement: Time-of-flight based on PMD technology.
- Range: 0.03 to 2 meters.
- Dimensions: 56 x 18.2 x 46.8 mm.
- Output: Normally open/normally closed; complementary.
- Application: Suitable for detecting glossy surfaces, and various mounting positions.
- Display: With display and pushbuttons for precise switch point settings.
Product List:
Model No |
Image |
Function principle |
Electrical design |
Operating voltage |
Switching frequency |
Connection |
|---|---|---|---|---|---|---|

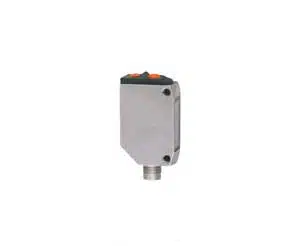

| O6H400 |  |
Diffuse reflection sensor | PNP | 10…30 DC | 1000 | Connector: 1 x M8; coding: A |

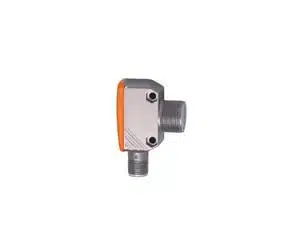

| OGP280 |  |
Retro-reflective sensor | PNP | 10…30 DC | 1000 | Connector: 1 x M12; coding: A |

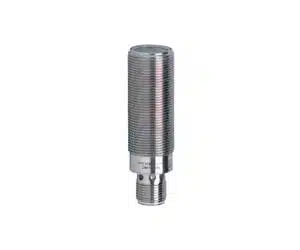

| OGS200 |  |
Through-beam sensor | – | 10…36 DC | – | Connector: 1 x M12; coding: A |

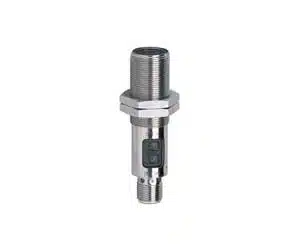

| OGT300 |  |
Diffuse reflection sensor | PNP | 10…36 DC | 2000 | Connector: 1 x M12; coding: A |

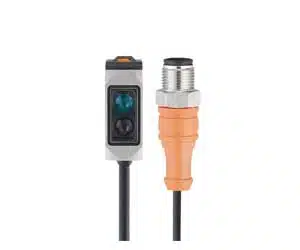

| O6H301 |  |
Diffuse reflection sensor | PNP | 10…30 DC | 1000 |
Cable: 0.3 m, PVC; 3 x 0.25 mm² Connector: 1 x M12; coding: A |
Our Dealing Photoelectric Sensor Brands
Frequently Asked Questions
What are the techniques of photoelectric sensor?
Photoelectric sensors primarily use three sensing methods: Through beam, Retro-reflective, and Diffuse or Reflective. Each method has distinct characteristics for target detection. The Through beam method involves separate transmitter and receiver units. Retro-reflective sensors use reflectors to return light to the receiver. The Diffuse method relies on light reflection directly from the target.
What is PNP and NPN sensor?
PNP and NPN sensors are types of three-wire sensors used in various applications. Both are powered by positive and negative leads. PNP sensors send a positive output to industrial controls when activated. Conversely, NPN sensors emit a negative signal in their “on” state. These differences stem from their internal circuit designs.
What is the output of a photoelectric sensor?
The output of a photoelectric sensor is typically digital or analog. Digital outputs switch on or off, often using a three-wire configuration. These configurations include PNP (sourcing output) or NPN (sinking outputs). This design allows for straightforward integration with various control systems.
