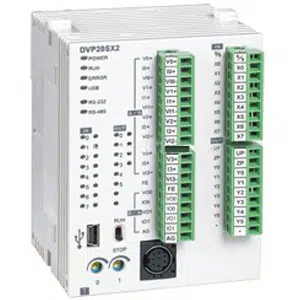

Delta DVP20SX211S – DVP SX2 PLC Controller
The Delta DVP20SX211S Programmable Logic Controller is a DVP SX2 PLC Controller combining 8 digital inputs, 4 analog inputs, 2 analog outputs, and 6 solid-state outputs powered by 24VDC. With 10k data registers and 16k program steps, it supports precise analog processing and fast digital control. Manufactured by Delta, it belongs to the Delta Programmable Logic Controller family within the DVP-SX2 Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP20SX211S |
Delta DVP20SX211S Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Output Type | Transistor PNP |
| Number of Inputs and Type | Digital (8), Analog (4) |
| Number of Outputs and Type | Analog (2), Solid State (6) |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Fuse Capacity | 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Data register | 10k words |
| Program capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air DischargeEFT: Power Line, 2 kVDigital I/O: 1 kVAnalog & Communication I/O |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
| Earth | The diameter of the grounding wire shall not be shorter than that of the power supply cable.(When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Power consumption | 4W |
| Max. Input Frequency | 100 kHz |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature)Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | 5%~95% (humidity)5%~95% (humidity); pollution degree 2 |
| Response Time | OFF→ON: 2 μsON→OFF: 3μs |
The Delta DVP20SX211S PLC is a compact controller from the Delta DVP SX2 platform, designed for applications requiring both analog measurement and digital control. This Delta PLC integrates digital and analog I/O, solid-state outputs, and a 24 VDC operating supply, enabling reliable logic execution and signal handling in industrial automation systems.
In practical applications, the Delta DVP SX2 PLC is widely used in packaging machines, process automation, material handling systems, and equipment requiring mixed-signal control. The combination of analog inputs and outputs allows accurate monitoring and adjustment of process variables, while solid-state outputs support high-speed switching for motion and control tasks.
The Delta DVP20SX211S follows the design standards of the Delta PLC DVP SX2 series, supporting long-term industrial operation with stable electrical performance and compact panel integration. Engineers selecting Delta DVP SX2 controllers value their balanced I/O structure, memory capacity, and suitability for automation projects that demand both precision control and dependable digital performance.
