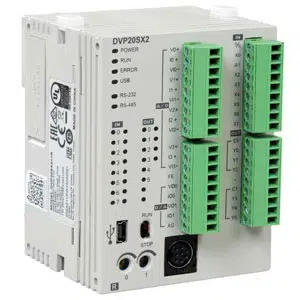

DVP20SX211T: Delta DVP SX2
The Technical Specifications of Delta DVP SX2 DVP20SX211T:
- Series: DVP-SX2 Series PLC
- Power Supply Voltage: 24 VDC
- Data register: 10k words
- Output Method: Relay
- Operating Temperature: 0°C ~ 55°C
- Program Capacity: 16k Steps
- Number of Inputs and Type: Digital (8), Analog (4)
- Number of Outputs and Type: Analog (2), Relay (6)
- Power consumption: 4W
Delta DVP SX2 DVP20SX211T Technical Specifications:
| Output Type | Transistor NPN |
| Type | CPU |
| Power supply voltage | 24VDC (-15%~20%) |
| Fuse Capacity | 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Data register | 10k words |
| Program Capacity | 16k Steps |
| Number of Inputs and Type | 36 – Digital |
| Number of Outputs and Type | 24 – Relay |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O |
| Earth | The diameter of the grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | 5%~95% (humidity) 5%~95% (humidity); pollution degree 2 |
| Max. Input Frequency | 100KHz |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
| Power consumption | 4W |
| Response Time | OFF→ON: 3.5μs ON→OFF: 20μs |
| Weight (g) | 224g |
Looking for the Delta DVP SX2 DVP20SX211T? Part of the DVP-SX2 Series, this PLC runs on a 24VDC power supply with a 10k word data register. It operates efficiently between 0°C and 55°C, supporting up to 16k programming steps with a power consumption of 4W. It comes equipped with 8 digital inputs, 4 analog inputs, 2 analog outputs, and 6 relay outputs, offering versatile control capabilities. Designed for precision and reliability, it’s an excellent choice for diverse automation applications. For the best deals on Delta PLCs, visit IndMALL Automation today!
