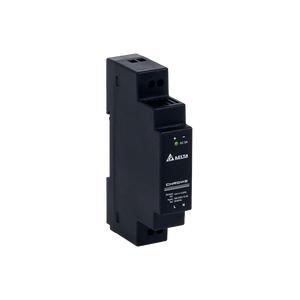

Delta DRC-12V10W1AZ: 0.83A 9.96W DIN Rail Power Supply
Technical Specifications of Delta 0.83A 9.96W DIN Rail Power Supply DRC-12V10W1AZ:
| Spec | Value |
|---|---|
| Output Current | 0.83A |
| Output Voltage | 12V |
| Output Power | 9.96W |
| Input Current | < 0.30A @ 115Vac, < 0.20A @ 230Vac |
Delta 0.83A 9.96W DIN Rail Power Supply DRC-12V10W1AZ Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 0.83A |
| Output Voltage | 12V |
| Output Voltage Adjustment Range | - |
| Output Power | 9.96W |
| Line Regulation | < 0.5% (@ 90-264Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 90-264Vac input, 0-100% load) |
| PARD | < 100mVpp |
| Start-up Time | < 3,000ms @ nominal input (100% load) |
| Hold-up Time | > 10ms @ 115Vac, > 60ms @ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 90-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 100Hz) |
| Start-up with Capacitive Loads | 3,000μF Max |
| Rise Time | < 70ms @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 125-375Vdc |
| Input Current | < 0.30A @ 115Vac, < 0.20A @ 230Vac |
| Efficiency at 100% load | > 82.0% @ 115Vac, > 80.5% @ 230Vac |
| Inrush Current | < 15A @ 115Vac, < 30A @ 230Vac |
| Leakage Current | < 0.25mA @ 240Vac |
| Power Dissipation | 0% load: < 0.15W @ 115Vac & 230Vac 100% load: < 2.18W @ 115Vac, < 2.40W @ 230Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | M4 x 2 Pins (Rated 300V/16A) |
| Output Terminal | M4 x 2 Pins (Rated 300V/16A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input / Output: AWG 24-12 |
| Unit Weight | 0.06 kg (0.13 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz @ 19.6m/S² (2G peak); 10 min per cycle, 60 min for all X, Y, Z directions |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 4G for a duration of 22ms, 3 shocks for each 3 directions, 9 times in total |
| Operating Temperature | -25°C to +71°C |
| Storage Temperature | -25°C to +85°C |
| Power De-rating | > 55°C de-rate power by 2.5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | - |
| Vibration (Non-Operating) | - |
| Operating Altitude | 0 to 2,000 Meters (6,560 ft.) |
| Pollution Degree | 2 |
| Over Voltage Category | II |
