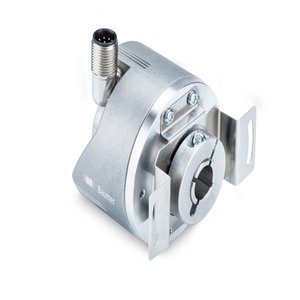

Baumer optoTurn EN580E.ML-TT14.GA11B.13120.H Rotary Encoder
Technical Specifications of Baumer รธ14 mm Shaft Type Encoder optoTurn EN580E.ML-TT14.GA11B.13120.H 11246063:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Connector M12, 8-pin, flexible |
Baumer optoTurn EN580E.ML-TT14.GA11B.13120.H Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | โค80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | ยฑ0.03 ยฐ |
| Sensing method | Optical |
| Size (flange) | รธ58 mm |
| Shaft type | รธ14 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | โค6000 rpm (+25 ยฐC) |
| Starting torque | โค0.04 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 ยฐC (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration ยฑ0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
| Weight approx. | 400 g |
| Connection | Connector M12, 8-pin, flexible |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
Get A Quote for Baumer รธ14 mm Shaft Type Encoder optoTurn EN580E.ML-TT14.GA11B.13120.H part no: 11246063 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-TT14.GA11B.13120.H, 11246063 feature voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is รธ58 mm, making them suitable for various industrial applications. The operating speed reaches up to โค6000 rpm (+25 ยฐC) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Connector M12, 8-pin, flexible, ensuring secure and efficient data transmission. Match Your Needs with a Quote for your requirement of Baumer รธ14 mm Shaft Type Encoder. Our pricing and support are unrivaled, especially when compared to other Distributors.
