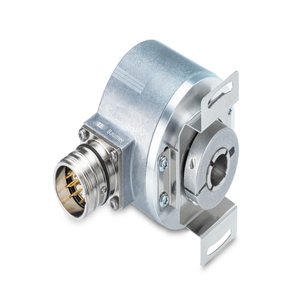

optoTurn EN580E.ML-TT14.G$$1B.13120.H/11250132: Baumer 12-pin Connection
Technical Specifications of Baumer 12-pin Connection optoTurn EN580E.ML-TT14.G$$1B.13120.H/11250132 11250132:
| Spec | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CW (option 3252) |
Baumer 12-pin Connection optoTurn EN580E.ML-TT14.G$$1B.13120.H/11250132 Technical Specifications:
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | ≤80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | ±0.03 ° |
| Sensing method | Optical |
| Size (flange) | ø58 mm |
| Shaft type | ø14 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | ≤6000 rpm (+25 °C) |
| Starting torque | ≤0.04 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 °C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CW (option 3252) |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
Mail Us for Baumer 12-pin Connection optoTurn EN580E.ML-TT14.G$$1B.13120.H/11250132 part no: 11250132 at the lowest pricing. Technical Specs Summary of optoTurn EN580E.ML-TT14.G$$1B.13120.H/11250132, 11250132 are voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CW (option 3252), ensuring secure and efficient data transmission. Navigate Your Needs with a Quote for your requirement of Baumer 12-pin Connection. We excel in offering more cost-effective and supportive solutions than other Competitors.
