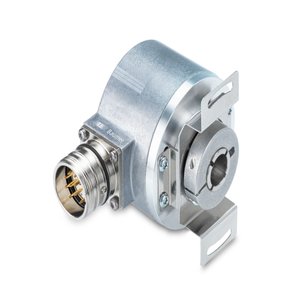

optoTurn EN580E.ML-TT12.GB11B.13120.H: 11246047 - Baumer Multiturn Function

Technical Specifications of Baumer Multiturn Function Encoder optoTurn EN580E.ML-TT12.GB11B.13120.H 11246047:

SpecValue
Voltage supply8...30 VDC
InterfaceSSI
Sensing methodOptical
ConnectionFlange connector M23, 12-pin, CCW

Baumer Multiturn Function Encoder optoTurn EN580E.ML-TT12.GB11B.13120.H 11246047 Technical Specifications:

SpecificationValue
Voltage supply8...30 VDC
Reverse polarity protectionYes
Consumption w/o load≤80 mA (24 VDC)
InterfaceSSI
FunctionMultiturn
Total resolution
Absolute accuracy±0.03 °
Sensing methodOptical
Status indicator
Size (flange)ø58 mm
Shaft typeø12 mm (through hollow shaft)
Protection EN 60529IP 54 (flange side), IP 65 (housing side)
Operating speed≤6000 rpm (+25 °C)
Starting acceleration
Starting torque≤0.04 Nm
Rotor moment of inertia
MaterialHousing: aluminium, Shaft: stainless steel
Operating temperature-25...+85 °C (see general information)
Relative humidity95 % non-condensing
ResistanceIEC 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms
Weight approx.400 g
ConnectionFlange connector M23, 12-pin, CCW
Flange
Admitted shaft load
Consumption typ.
Initializing time
Data currency
Profile conformity
Code sequenceCW: ascending values with clockwise sense of rotation (looking at flange)
Output stagesSSI data: Linedriver RS422
Incremental output
Output signalsSSI data
Output frequency
Moment of inertia
Working distance
Ask for the Pricing of Baumer Multiturn Function Encoder optoTurn EN580E.ML-TT12.GB11B.13120.H part no: 11246047 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-TT12.GB11B.13120.H, 11246047 feature voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Multiturn Function Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
