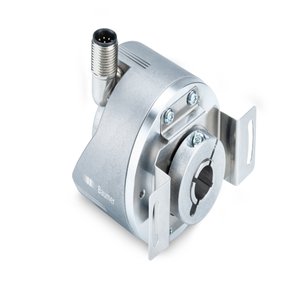

optoTurn EN580E.ML-TT12.GA11B.13120.H: 11246044 - Baumer 4096 / 12 bit Revolution

Technical Specifications of Baumer 4096 / 12 bit Revolution optoTurn EN580E.ML-TT12.GA11B.13120.H 11246044:

SpecValue
Voltage supply8...30 VDC
InterfaceSSI
Sensing methodOptical
ConnectionConnector M12, 8-pin, flexible

Baumer 4096 / 12 bit Revolution optoTurn EN580E.ML-TT12.GA11B.13120.H 11246044 Technical Specifications:

SpecificationValue
Voltage supply8...30 VDC
Reverse polarity protectionYes
Consumption w/o load≤80 mA (24 VDC)
InterfaceSSI
FunctionMultiturn
Total resolution
Absolute accuracy±0.03 °
Sensing methodOptical
Status indicator
Size (flange)ø58 mm
Shaft typeø12 mm (through hollow shaft)
Protection EN 60529IP 54 (flange side), IP 65 (housing side)
Operating speed≤6000 rpm (+25 °C)
Starting acceleration
Starting torque≤0.04 Nm
Rotor moment of inertia
MaterialHousing: aluminium, Shaft: stainless steel
Operating temperature-25...+85 °C (see general information)
Relative humidity95 % non-condensing
ResistanceIEC 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms
Weight approx.400 g
ConnectionConnector M12, 8-pin, flexible
Flange
Admitted shaft load
Consumption typ.
Initializing time
Data currency
Profile conformity
Code sequenceCW: ascending values with clockwise sense of rotation (looking at flange)
Output stagesSSI data: Linedriver RS422
Incremental output
Output signalsSSI data
Output frequency
Moment of inertia
Working distance
Mail Us for Baumer 4096 / 12 bit Revolution optoTurn EN580E.ML-TT12.GA11B.13120.H part no: 11246044 at the lowest pricing. Technical Specs Summary of optoTurn EN580E.ML-TT12.GA11B.13120.H, 11246044 are voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Connector M12, 8-pin, flexible, ensuring secure and efficient data transmission. Navigate Your Needs with a Quote for your requirement of Baumer 4096 / 12 bit Revolution. We excel in offering more cost-effective and supportive solutions than other Competitors.
