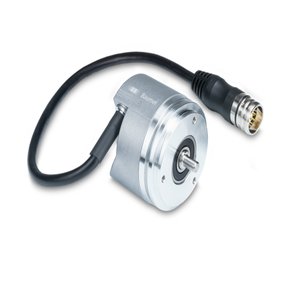

optoTurn EN580E.ML-SU06.GE11B.13120.H: 11245979 - Baumer Optical Sensing
Technical Specifications of Baumer Optical Sensing Encoder optoTurn EN580E.ML-SU06.GE11B.13120.H 11245979:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | SSI |
Sensing method | Optical |
Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Baumer Optical Sensing Encoder optoTurn EN580E.ML-SU06.GE11B.13120.H 11245979 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤80 mA (24 VDC) |
Interface | SSI |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.03 ° |
Sensing method | Optical |
Status indicator | |
Size (flange) | ø58 mm |
Shaft type | ø6 x 10 mm, solid shaft with flat |
Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | |
Starting torque | ≤0.02 Nm |
Rotor moment of inertia | |
Material | Housing: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | EN 60068-2-6, Vibration ±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
Weight approx. | 400 g |
Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Flange | Synchro flange |
Admitted shaft load | ≤40 N axial, ≤80 N radial |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
Output stages | SSI data: Linedriver RS422 |
Incremental output | |
Output signals | SSI data |
Output frequency | |
Moment of inertia | |
Working distance |
Please speak to our Technical Engineer for Baumer Optical Sensing Encoder optoTurn EN580E.ML-SU06.GE11B.13120.H part no: 11245979 at attractive prices. Technical Specs Summary of optoTurn EN580E.ML-SU06.GE11B.13120.H, 11245979 includes voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flylead connector M23, 12-pin, tangential, length 300 mm, ensuring secure and efficient data transmission. Match Your Needs with a Quote for your requirement of Baumer Optical Sensing Encoder. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
