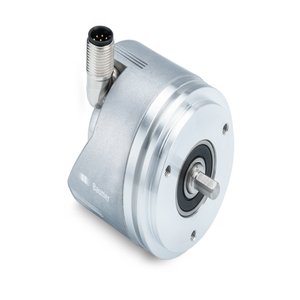

optoTurn EN580E.ML-SU06.GA11B.13120.H: 11245975 - Baumer Synchro Flange
Technical Specifications of Baumer Synchro Flange Encoder optoTurn EN580E.ML-SU06.GA11B.13120.H 11245975:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | SSI |
Sensing method | Optical |
Connection | Connector M12, 8-pin, flexible |
Baumer Synchro Flange Encoder optoTurn EN580E.ML-SU06.GA11B.13120.H 11245975 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤80 mA (24 VDC) |
Interface | SSI |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.03 ° |
Sensing method | Optical |
Status indicator | |
Size (flange) | ø58 mm |
Shaft type | ø6 x 10 mm, solid shaft with flat |
Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | |
Starting torque | ≤0.02 Nm |
Rotor moment of inertia | |
Material | Housing: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | EN 60068-2-6, Vibration ±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
Weight approx. | 400 g |
Connection | Connector M12, 8-pin, flexible |
Flange | Synchro flange |
Admitted shaft load | ≤40 N axial, ≤80 N radial |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
Output stages | SSI data: Linedriver RS422 |
Incremental output | |
Output signals | SSI data |
Output frequency | |
Moment of inertia | |
Working distance |
IndMALL Offers Baumer Synchro Flange Encoder optoTurn EN580E.ML-SU06.GA11B.13120.H part no: 11245975 at economical Choices. Product Tech Specs of optoTurn EN580E.ML-SU06.GA11B.13120.H, 11245975 include voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Connector M12, 8-pin, flexible, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Synchro Flange Encoder. Trust in our superior pricing and more dedicated support over other Distributors.
