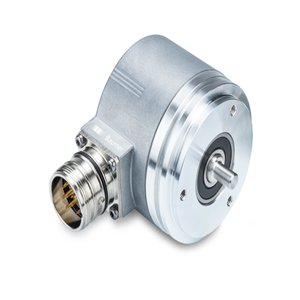

optoTurn EN580E.ML-SU06.GB1B1.13120.H: 11246021 - Baumer Magnetic Fields
Technical Specifications of Baumer Magnetic Fields Encoder optoTurn EN580E.ML-SU06.GB1B1.13120.H 11246021:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | BiSS C Certified |
Sensing method | Optical |
Connection | Flange connector M23, 12-pin, CCW |
Baumer Magnetic Fields Encoder optoTurn EN580E.ML-SU06.GB1B1.13120.H 11246021 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤80 mA (24 VDC) |
Interface | BiSS C Certified |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.03 ° |
Sensing method | Optical |
Status indicator | |
Size (flange) | ø58 mm |
Shaft type | ø6 x 10 mm, solid shaft with flat |
Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | |
Starting torque | ≤0.02 Nm |
Rotor moment of inertia | |
Material | Housing: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | EN 60068-2-6, Vibration ±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
Weight approx. | 400 g |
Connection | Flange connector M23, 12-pin, CCW |
Flange | Synchro flange |
Admitted shaft load | ≤40 N axial, ≤80 N radial |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
Output stages | BiSS data: Linedriver RS422 |
Incremental output | |
Output signals | BiSS data (SLO) |
Output frequency | |
Moment of inertia | |
Working distance |
Ask for the Pricing of Baumer Magnetic Fields Encoder optoTurn EN580E.ML-SU06.GB1B1.13120.H part no: 11246021 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-SU06.GB1B1.13120.H, 11246021 feature voltage supply of 8...30 VDC. These encoders feature the BiSS C Certified interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Magnetic Fields Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
