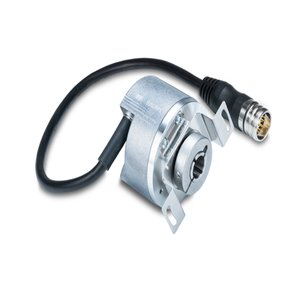

optoTurn EN580E.ML-TT12.GE1B1.13120.H: 11246061 - Baumer Clamping Flange
Technical Specifications of Baumer Encoder Using Clamping Flange optoTurn EN580E.ML-TT12.GE1B1.13120.H 11246061:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | BiSS C Certified |
Sensing method | Optical |
Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Baumer Encoder Using Clamping Flange optoTurn EN580E.ML-TT12.GE1B1.13120.H 11246061 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤80 mA (24 VDC) |
Interface | BiSS C Certified |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.03 ° |
Sensing method | Optical |
Status indicator | |
Size (flange) | ø58 mm |
Shaft type | ø12 mm (through hollow shaft) |
Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | |
Starting torque | ≤0.04 Nm |
Rotor moment of inertia | |
Material | Housing: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | IEC 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
Weight approx. | 400 g |
Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Flange | |
Admitted shaft load | |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
Output stages | BiSS data: Linedriver RS422 |
Incremental output | |
Output signals | BiSS data (SLO) |
Output frequency | |
Moment of inertia | |
Working distance |
Ask for the Pricing of Baumer Encoder Using Clamping Flange optoTurn EN580E.ML-TT12.GE1B1.13120.H part no: 11246061 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-TT12.GE1B1.13120.H, 11246061 feature voltage supply of 8...30 VDC. These encoders feature the BiSS C Certified interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flylead connector M23, 12-pin, tangential, length 300 mm, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Encoder Using Clamping Flange. We're committed to offering more favorable pricing and more responsive support than other Traders.
