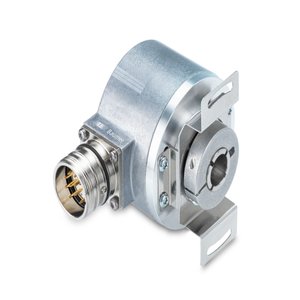

Baumer optoTurn EN580E.ML-TT12.GB1B1.13120.H Rotary Encoder
Technical Specifications of Baumer Multiturn Applications optoTurn EN580E.ML-TT12.GB1B1.13120.H 11246048:
| Voltage supply | 8...30 VDC |
| Interface | BiSS C Certified |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CCW |
Baumer optoTurn EN580E.ML-TT12.GB1B1.13120.H Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€80 mA (24 VDC) |
| Interface | BiSS C Certified |
| Function | Multiturn |
| Absolute accuracy | Β±0.03 Β° |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ12 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting torque | β€0.04 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration Β±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CCW |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | BiSS data: Linedriver RS422 |
| Output signals | BiSS data (SLO) |
Send Your Inquiry for Baumer Multiturn Applications optoTurn EN580E.ML-TT12.GB1B1.13120.H part no: 11246048 with cost-effective solutions. Essential Technical Specs of optoTurn EN580E.ML-TT12.GB1B1.13120.H, 11246048 are voltage supply of 8...30 VDC. These encoders feature the BiSS C Certified interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Capture the Best Deal with a Quote for your requirement of Baumer Multiturn Applications. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
