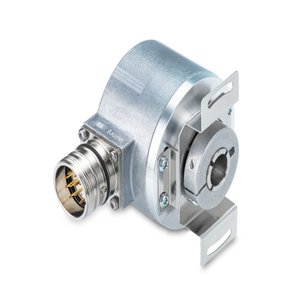

Baumer optoTurn EN580E.ML-TT12.G$$1B.13120.H/11250130 Rotary Encoder
Technical Specifications of Baumer SSI Encoder optoTurn EN580E.ML-TT12.G$$1B.13120.H/11250130 11250130:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CW (option 3252) |
Baumer optoTurn EN580E.ML-TT12.G$$1B.13120.H/11250130 Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | โค80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | ยฑ0.03 ยฐ |
| Sensing method | Optical |
| Size (flange) | รธ58 mm |
| Shaft type | รธ12 mm (through hollow shaft) |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | โค6000 rpm (+25 ยฐC) |
| Starting torque | โค0.04 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 ยฐC (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | IEC 60068-2-6, Vibration ยฑ0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 100 g, 11 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CW (option 3252) |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
IndMALL Offers Baumer SSI Encoder optoTurn EN580E.ML-TT12.G$$1B.13120.H/11250130 part no: 11250130 at economical Choices. Product Tech Specs of optoTurn EN580E.ML-TT12.G$$1B.13120.H/11250130, 11250130 include voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is รธ58 mm, making them suitable for various industrial applications. The operating speed reaches up to โค6000 rpm (+25 ยฐC) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CW (option 3252), ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer SSI Encoder. Trust in our superior pricing and more dedicated support over other Distributors.
