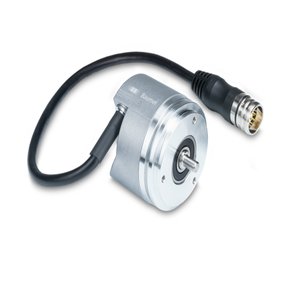

Baumer optoTurn EN580E.ML-SU06.GE1B1.13120.H Rotary Encoder
Technical Specifications of Baumer 8192 / 13 bit Revolution optoTurn EN580E.ML-SU06.GE1B1.13120.H 11245978:
| Voltage supply | 8...30 VDC |
| Interface | BiSS C Certified |
| Sensing method | Optical |
| Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
Baumer optoTurn EN580E.ML-SU06.GE1B1.13120.H Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€80 mA (24 VDC) |
| Interface | BiSS C Certified |
| Function | Multiturn |
| Absolute accuracy | Β±0.03 Β° |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ6 x 10 mm, solid shaft with flat |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting torque | β€0.02 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration Β±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Flylead connector M23, 12-pin, tangential, length 300 mm |
| Flange | Synchro flange |
| Admitted shaft load | β€40 N axial, β€80 N radial |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | BiSS data: Linedriver RS422 |
| Output signals | BiSS data (SLO) |
Reach Us by Email for Baumer 8192 / 13 bit Revolution optoTurn EN580E.ML-SU06.GE1B1.13120.H part no: 11245978 at Discounted Rates. Key Technical Features of optoTurn EN580E.ML-SU06.GE1B1.13120.H, 11245978 are voltage supply of 8...30 VDC. These encoders feature the BiSS C Certified interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flylead connector M23, 12-pin, tangential, length 300 mm, ensuring secure and efficient data transmission. Navigate Your Needs with a Quote for your requirement of Baumer 8192 / 13 bit Revolution. Our pricing and support are unrivaled, especially when compared to other Competitors.
