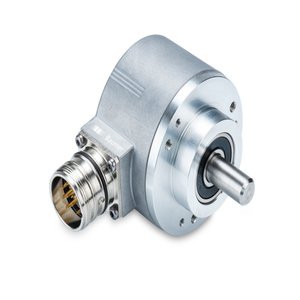

Baumer optoTurn EN580E.ML-SC10.GB11B.13120.H Rotary Encoder
Technical Specifications of Baumer Flange Connector M23 optoTurn EN580E.ML-SC10.GB11B.13120.H 11246027:
| Voltage supply | 8...30 VDC |
| Interface | SSI |
| Sensing method | Optical |
| Connection | Flange connector M23, 12-pin, CCW |
Baumer optoTurn EN580E.ML-SC10.GB11B.13120.H Rotary Encoder β Technical Specifications
| Specification | Value |
|---|---|
| Voltage supply | 8...30 VDC |
| Reverse polarity protection | Yes |
| Consumption w/o load | β€80 mA (24 VDC) |
| Interface | SSI |
| Function | Multiturn |
| Absolute accuracy | Β±0.03 Β° |
| Sensing method | Optical |
| Size (flange) | ΓΈ58 mm |
| Shaft type | ΓΈ10 x 20 mm, solid shaft with flat |
| Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
| Operating speed | β€6000 rpm (+25 Β°C) |
| Starting torque | β€0.02 Nm |
| Material | Housing: aluminium, Shaft: stainless steel |
| Operating temperature | -25...+85 Β°C (see general information) |
| Relative humidity | 95 % non-condensing |
| Resistance | EN 60068-2-6, Vibration Β±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
| Weight approx. | 400 g |
| Connection | Flange connector M23, 12-pin, CCW |
| Flange | Clamping flange |
| Admitted shaft load | β€40 N axial, β€80 N radial |
| Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
| Output stages | SSI data: Linedriver RS422 |
| Output signals | SSI data |
Ask for the Pricing of Baumer Flange Connector M23 optoTurn EN580E.ML-SC10.GB11B.13120.H part no: 11246027 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-SC10.GB11B.13120.H, 11246027 feature voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ΓΈ58 mm, making them suitable for various industrial applications. The operating speed reaches up to β€6000 rpm (+25 Β°C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CCW, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Flange Connector M23. We're committed to offering more favorable pricing and more responsive support than other Traders.
