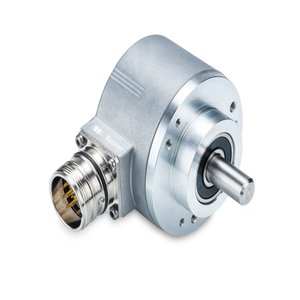

optoTurn EN580E.ML-SC10.G$$1B.13120.H: Baumer Absolute Positioning
Technical Specifications of Baumer Absolute Positioning optoTurn EN580E.ML-SC10.G$$1B.13120.H 11249978:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | SSI |
Sensing method | Optical |
Connection | Flange connector M23, 12-pin, CW (option 3252) |
Baumer Absolute Positioning optoTurn EN580E.ML-SC10.G$$1B.13120.H Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤80 mA (24 VDC) |
Interface | SSI |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.03 ° |
Sensing method | Optical |
Status indicator | |
Size (flange) | ø58 mm |
Shaft type | ø10 x 20 mm, solid shaft with flat |
Protection EN 60529 | IP 54 (flange side), IP 65 (housing side) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | |
Starting torque | ≤0.02 Nm |
Rotor moment of inertia | |
Material | Housing: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | EN 60068-2-6, Vibration ±4 mm - 10-61 Hz, 30 g - 61-2000 Hz, EN 60068-2-27, Shock 100 g, 6 ms |
Weight approx. | 400 g |
Connection | Flange connector M23, 12-pin, CW (option 3252) |
Flange | Clamping flange |
Admitted shaft load | ≤40 N axial, ≤80 N radial |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | CW: ascending values with clockwise sense of rotation (looking at flange) |
Output stages | SSI data: Linedriver RS422 |
Incremental output | |
Output signals | SSI data |
Output frequency | |
Moment of inertia | |
Working distance |
Ask for the Pricing of Baumer Absolute Positioning optoTurn EN580E.ML-SC10.G$$1B.13120.H part no: 11249978 at unbeatable prices. Detailed Specifications of optoTurn EN580E.ML-SC10.G$$1B.13120.H, 11249978 feature voltage supply of 8...30 VDC. These encoders feature the SSI interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Flange connector M23, 12-pin, CW (option 3252), ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Absolute Positioning. We're committed to offering more favorable pricing and more responsive support than other Traders.
