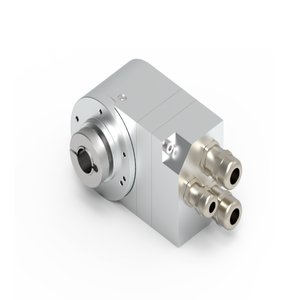

EN580C.ML-TN14.HH2C1.21160.H: 11267456 - Baumer Singleturn 21 bit Resolution

Technical Specifications of Baumer Singleturn 21 bit Resolution EN580C.ML-TN14.HH2C1.21160.H 11267456:

SpecValue
Voltage supply8...30 VDC
InterfaceCANopen®
Sensing methodOptical
ConnectionCable gland

Baumer Singleturn 21 bit Resolution EN580C.ML-TN14.HH2C1.21160.H 11267456 Technical Specifications:

SpecificationValue
Voltage supply8...30 VDC
Reverse polarity protectionYes
Consumption w/o load≤100 mA (24 VDC)
InterfaceCANopen®
FunctionMultiturn
Total resolution
Absolute accuracy±0.01 °
Sensing methodOptical
Status indicatorDUO-LED integrated in bus cover
Size (flange)ø58 mm
Shaft typeø14 mm (through hollow shaft)
Protection EN 60529IP 65 / IP 67 (with shaft seal)
Operating speed≤6000 rpm (+25 °C)
Starting acceleration≤1000 U/s²
Starting torque≤0.06 Nm (+25 °C, IP 65 / IP 67)
Rotor moment of inertia
MaterialHousing: aluminium, Flange: aluminium, Bus cover: zinc die-cast, Shaft: stainless steel
Operating temperature-25...+85 °C (see general information)
Relative humidity95 % non-condensing
ResistanceEN 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 3 ms
Weight approx.600 g
ConnectionCable gland
Flange
Admitted shaft load
Consumption typ.
Initializing time
Data currency
Profile conformityCANopen® CiA 301 V4.2.0
Code sequence
Output stages
Incremental output
Output signals
Output frequency
Moment of inertia
Working distance
Ask for the Pricing of Baumer Singleturn 21 bit Resolution EN580C.ML-TN14.HH2C1.21160.H part no: 11267456 at unbeatable prices. Detailed Specifications of EN580C.ML-TN14.HH2C1.21160.H, 11267456 feature voltage supply of 8...30 VDC. These encoders feature the CANopen® interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, Bus cover: zinc die-cast, Shaft: stainless steel, provides robust protection. The connection is facilitated by Cable gland, ensuring secure and efficient data transmission. Now's the Time to Secure a Quote for your requirement of Baumer Singleturn 21 bit Resolution. We're committed to offering more favorable pricing and more responsive support than other Traders.
