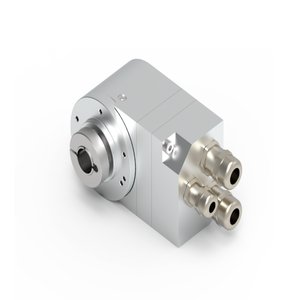

EN580C.ML-TN12.GH2PB.21160.H: 11266660 - Baumer 21 bit Optical Encoder
Technical Specifications of Baumer 21 bit Optical Encoder EN580C.ML-TN12.GH2PB.21160.H 11266660:
Spec | Value |
---|---|
Voltage supply | 8...30 VDC |
Interface | Profibus-DPV0 |
Sensing method | Optical |
Connection | Cable gland |
Baumer 21 bit Optical Encoder EN580C.ML-TN12.GH2PB.21160.H 11266660 Technical Specifications:
Specification | Value |
---|---|
Voltage supply | 8...30 VDC |
Reverse polarity protection | Yes |
Consumption w/o load | ≤100 mA (24 VDC) |
Interface | Profibus-DPV0 |
Function | Multiturn |
Total resolution | |
Absolute accuracy | ±0.01 ° |
Sensing method | Optical |
Status indicator | DUO-LED integrated in bus cover |
Size (flange) | ø58 mm |
Shaft type | ø12 mm (through hollow shaft) |
Protection EN 60529 | IP 54 (without shaft seal) |
Operating speed | ≤6000 rpm (+25 °C) |
Starting acceleration | ≤1000 U/s² |
Starting torque | ≤0.04 Nm (+25 °C, IP 54) |
Rotor moment of inertia | |
Material | Housing: aluminium, Flange: aluminium, Bus cover: aluminium, Shaft: stainless steel |
Operating temperature | -25...+85 °C (see general information) |
Relative humidity | 95 % non-condensing |
Resistance | EN 60068-2-6, Vibration ±0.75 mm - 10-58 Hz, 10 g - 58-2000 Hz, EN 60068-2-27, Shock 200 g, 3 ms |
Weight approx. | 500 g |
Connection | Cable gland |
Flange | |
Admitted shaft load | |
Consumption typ. | |
Initializing time | |
Data currency | |
Profile conformity | |
Code sequence | |
Output stages | |
Incremental output | |
Output signals | |
Output frequency | |
Moment of inertia | |
Working distance |
Give Us a Call for Baumer 21 bit Optical Encoder EN580C.ML-TN12.GH2PB.21160.H part no: 11266660 with budget-friendly prices. Technical Attributes are EN580C.ML-TN12.GH2PB.21160.H, 11266660 include voltage supply of 8...30 VDC. These encoders feature the Profibus-DPV0 interface, Multiturn functionality, and Optical sensing methods for accurate performance. The flange size is ø58 mm, making them suitable for various industrial applications. The operating speed reaches up to ≤6000 rpm (+25 °C) operations, ensuring reliable functionality in demanding environments. The Housing: aluminium, Flange: aluminium, Bus cover: aluminium, Shaft: stainless steel, provides robust protection. The connection is facilitated by Cable gland, ensuring secure and efficient data transmission. Navigate Your Needs with a Quote for your requirement of Baumer 21 bit Optical Encoder . We excel in offering more cost-effective and supportive solutions than other Competitors.
