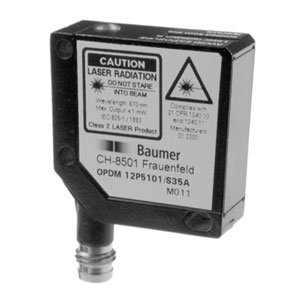

OPDM 12P5104/S35A: 10142512 - Baumer Laser Retro-reflective Sensor
Technical Specifications of Baumer Laser Retro-reflective Sensor OPDM 12P5104/S35A 10142512:
| Spec | Value |
|---|---|
| type | Retro-reflective laser sensor |
| Measuring Distance | 5 m |
| Output Circuit | PNP |
| Connection Types | Connector M8 4 pin |
Baumer Laser Retro-reflective Sensor OPDM 12P5104/S35A, 10142512 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Retro-reflective laser sensor |
| Measuring distance | 5 m |
| Adjustment | - |
| Output indicator | LED yellow |
| Light source | - |
| Wave length | 650 nm |
| Response time / release time | < 0.05 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Voltage drop Vd | <1.8 VDC |
| Output circuit | PNP |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 12.4 mm |
| Height / length | 35 mm |
| Depth | 35 mm |
| Design | Rectangular |
| Housing material | Die-cast zinc |
| Connection types | Connector M8 4 pin |
| Protection class | IP 67 |
| Operating temperature | -10 … +50 °C |
Get A Quote for Baumer Laser Retro-reflective Sensor OPDM 12P5104/S35A part no: 10142512 at unbeatable prices. Detailed Specifications of OPDM 12P5104/S35A, 10142512 feature Retro-reflective laser sensor has a sensing range of 5 m. It operated on a 10 … 30 VDC power supply, consuming 50 mA. The sensor features LED yellow indicators, and a fast response time of < 0.05 ms. It supports PNP output with a maximum current of 100 mA and a voltage drop of less than <1.8 VDC. Housed in a Rectangular Die-cast zinc, the sensor measures 12.4 mm x 35 mm x35 mm. It includes an IP 67 rating for dust and water protection and operates in temperatures from -10 … +50 °C. The Sensor comes with a Connector M8 4 pin. Match Your Needs with a Quote for your requirement of Baumer Laser Retro-reflective Sensor. Our pricing and support are unrivaled, especially when compared to other Distributors.
