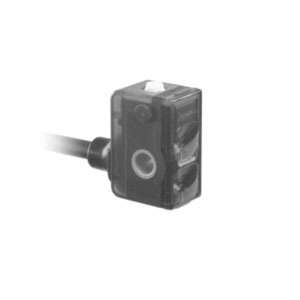

FZCK 07N6901/KS35A: 10152089 - Baumer Background Suppression Sensor
Technical Specifications of Baumer Background Suppression Sensor FZCK 07N6901/KS35A 10152089:
| Spec | Value |
|---|---|
| type | Background suppression |
| Measuring Distance | 10 … 60 mm |
| Output Circuit | NPN |
| Connection Types | Flylead connector M8 4 pin, L=200 mm |
Baumer Background Suppression Sensor FZCK 07N6901/KS35A, 10152089 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Background suppression |
| Measuring distance | 10 … 60 mm |
| Adjustment | - |
| Output indicator | LED yellow |
| Light source | Pulsed red LED |
| Wave length | 660 nm |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Voltage drop Vd | <1.8 VDC |
| Output circuit | NPN |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 16.2 mm |
| Depth | 10.8 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Protection class | IP 65 |
| Operating temperature | -20 … +50 °C |
Reach Us by Email for Baumer Background Suppression Sensor FZCK 07N6901/KS35A part no: 10152089 at Discounted Rates. Key Technical Features of FZCK 07N6901/KS35A, 10152089 are Background suppression has a sensing range of 10 … 60 mm. It operated on a 10 … 30 VDC power supply, consuming 25 mA. The sensor features LED yellow indicators, and a fast response time of < 0.5 ms. It supports NPN output with a maximum current of 100 mA and a voltage drop of less than <1.8 VDC. Housed in a Rectangular Plastic (PMMA, MABS, PA), the sensor measures 8 mm x 16.2 mm x10.8 mm. It includes an IP 65 rating for dust and water protection and operates in temperatures from -20 … +50 °C. The Sensor comes with a Flylead connector M8 4 pin, L=200 mm. Navigate Your Needs with a Quote for your requirement of Baumer Background Suppression Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
