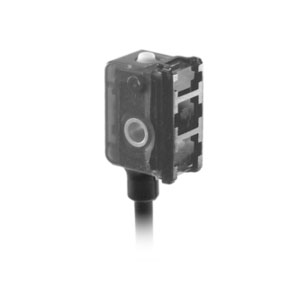

FPDK 07P6901: 10151061 - Baumer Retro-reflective Sensor
Technical Specifications of Baumer Retro-reflective Sensor FPDK 07P6901 10151061:
| Spec | Value |
|---|---|
| type | Retro-reflective sensor |
| Measuring Distance | 0.6 m-0.8 m |
| Output Circuit | PNP |
| Connection Types | Cable bottom side, 2 m |
Baumer Retro-reflective Sensor FPDK 07P6901, 10151061 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Retro-reflective sensor |
| Measuring distance | 0.6 m-0.8 m |
| Adjustment | - |
| Output indicator | LED yellow |
| Light source | Pulsed red LED |
| Wave length | 660 nm |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 11 … 30 VDC |
| Current consumption max. (no load) | 25 mA |
| Voltage drop Vd | <1.8 VDC |
| Output circuit | PNP |
| Output current | 100 mA |
| Short circuit protection | Yes |
| Width / diameter | 8 mm |
| Height / length | 17.8 mm |
| Depth | 12.6 mm |
| Design | Rectangular |
| Housing material | Plastic (PMMA, MABS, PA) |
| Connection types | Cable bottom side, 2 m |
| Protection class | IP 65 |
| Operating temperature | -20 … +50 °C |
Send Your Inquiry for Baumer Retro-reflective Sensor FPDK 07P6901 part no: 10151061 with cost-effective solutions. Essential Technical Specs of FPDK 07P6901, 10151061 are Retro-reflective sensor has a sensing range of 0.6 m-0.8 m. It operated on a 11 … 30 VDC power supply, consuming 25 mA. The sensor features LED yellow indicators, and a fast response time of < 0.5 ms. It supports PNP output with a maximum current of 100 mA and a voltage drop of less than <1.8 VDC. Housed in a Rectangular Plastic (PMMA, MABS, PA), the sensor measures 8 mm x 17.8 mm x12.6 mm. It includes an IP 65 rating for dust and water protection and operates in temperatures from -20 … +50 °C. The Sensor comes with a Cable bottom side, 2 m. Capture the Best Deal with a Quote for your requirement of Baumer Retro-reflective Sensor. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
