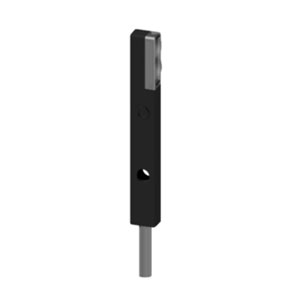

FHDK 04G6112/KS35A: 10162789 - Baumer BGS Photoelectric Sensors
Technical Specifications of Baumer BGS Photoelectric Sensors FHDK 04G6112/KS35A 10162789:
| Spec | Value |
|---|---|
| type | Background suppression |
| Measuring Distance | 50 mm -3 mm / +5 mm |
| Output Circuit | Push-pull |
| Connection Types | Flylead connector M8 4 pin, L=200 mm |
Baumer BGS Photoelectric Sensors FHDK 04G6112/KS35A, 10162789 Technical Specifications:
| Specification | Value |
|---|---|
| Type | Background suppression |
| Measuring distance | 50 mm -3 mm / +5 mm |
| Adjustment | - |
| Output indicator | LED yellow |
| Light source | Pulsed point source LED |
| Wave length | 660 nm |
| Response time / release time | < 0.5 ms |
| Voltage supply range +Vs | 11 … 30 VDC |
| Current consumption max. (no load) | 30 mA |
| Voltage drop Vd | <2 VDC |
| Output circuit | Push-pull |
| Output current | 50 mA |
| Short circuit protection | Yes |
| Width / diameter | 4 mm |
| Height / length | 44.8 mm |
| Depth | 6.2 mm |
| Design | Rectangular |
| Housing material | Plastic (ASA) |
| Connection types | Flylead connector M8 4 pin, L=200 mm |
| Protection class | IP 65 |
| Operating temperature | -10 … +50 °C |
Please speak to our Technical Engineer for Baumer BGS Photoelectric Sensors FHDK 04G6112/KS35A part no: 10162789 at attractive prices. Technical Specs Summary of FHDK 04G6112/KS35A, 10162789 includes Background suppression has a sensing range of 50 mm -3 mm / +5 mm. It operated on a 11 … 30 VDC power supply, consuming 30 mA. The sensor features LED yellow indicators, and a fast response time of < 0.5 ms. It supports Push-pull output with a maximum current of 50 mA and a voltage drop of less than <2 VDC. Housed in a Rectangular Plastic (ASA), the sensor measures 4 mm x 44.8 mm x6.2 mm. It includes an IP 65 rating for dust and water protection and operates in temperatures from -10 … +50 °C. The Sensor comes with a Flylead connector M8 4 pin, L=200 mm. Match Your Needs with a Quote for your requirement of Baumer BGS Photoelectric Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
